Work Flow

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

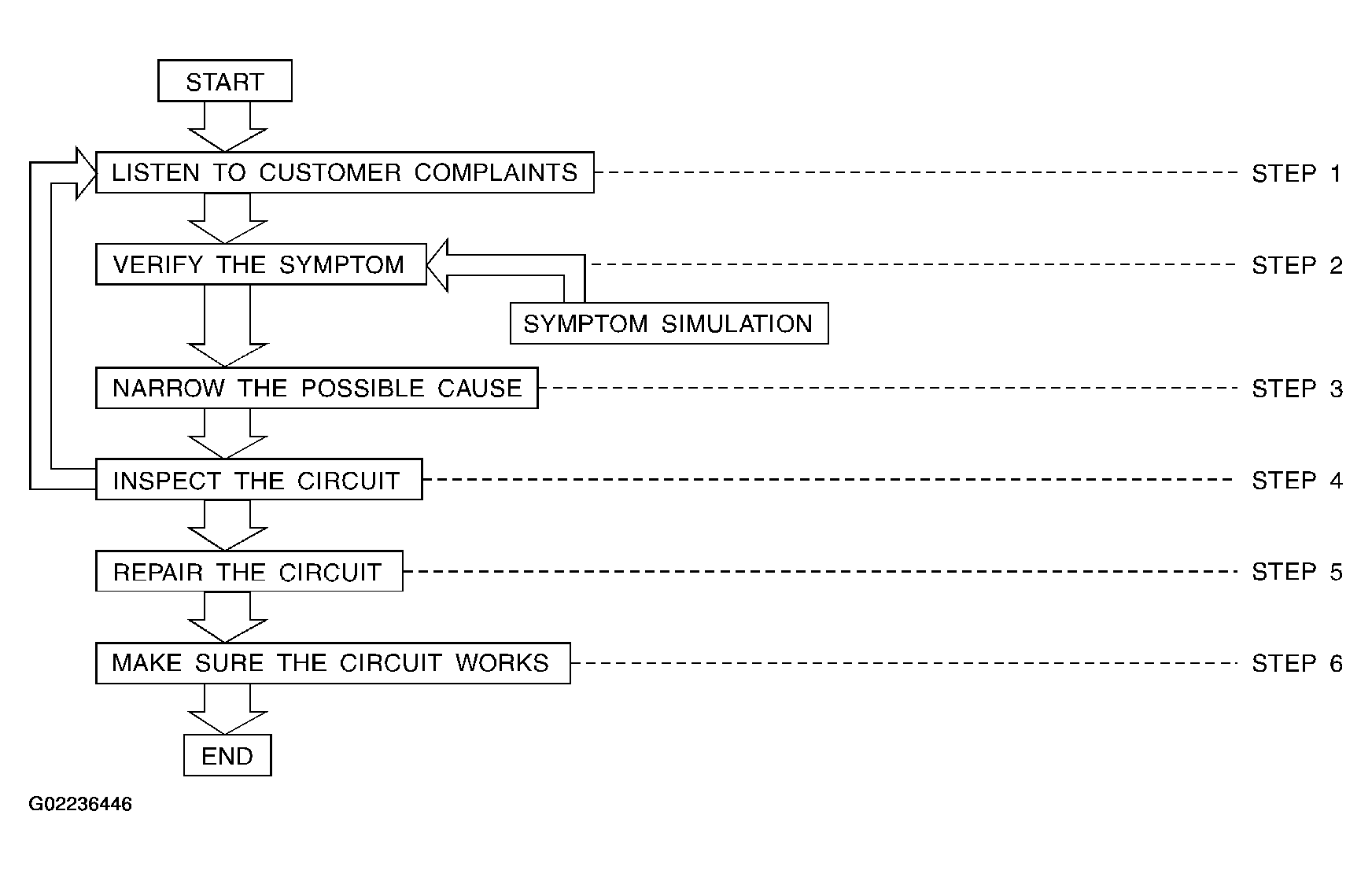

Fig 1: Displaying Electrical Incident Work Flow Procedure Chart
G02236446Courtesy of NISSAN MOTOR CO., U.S.A.

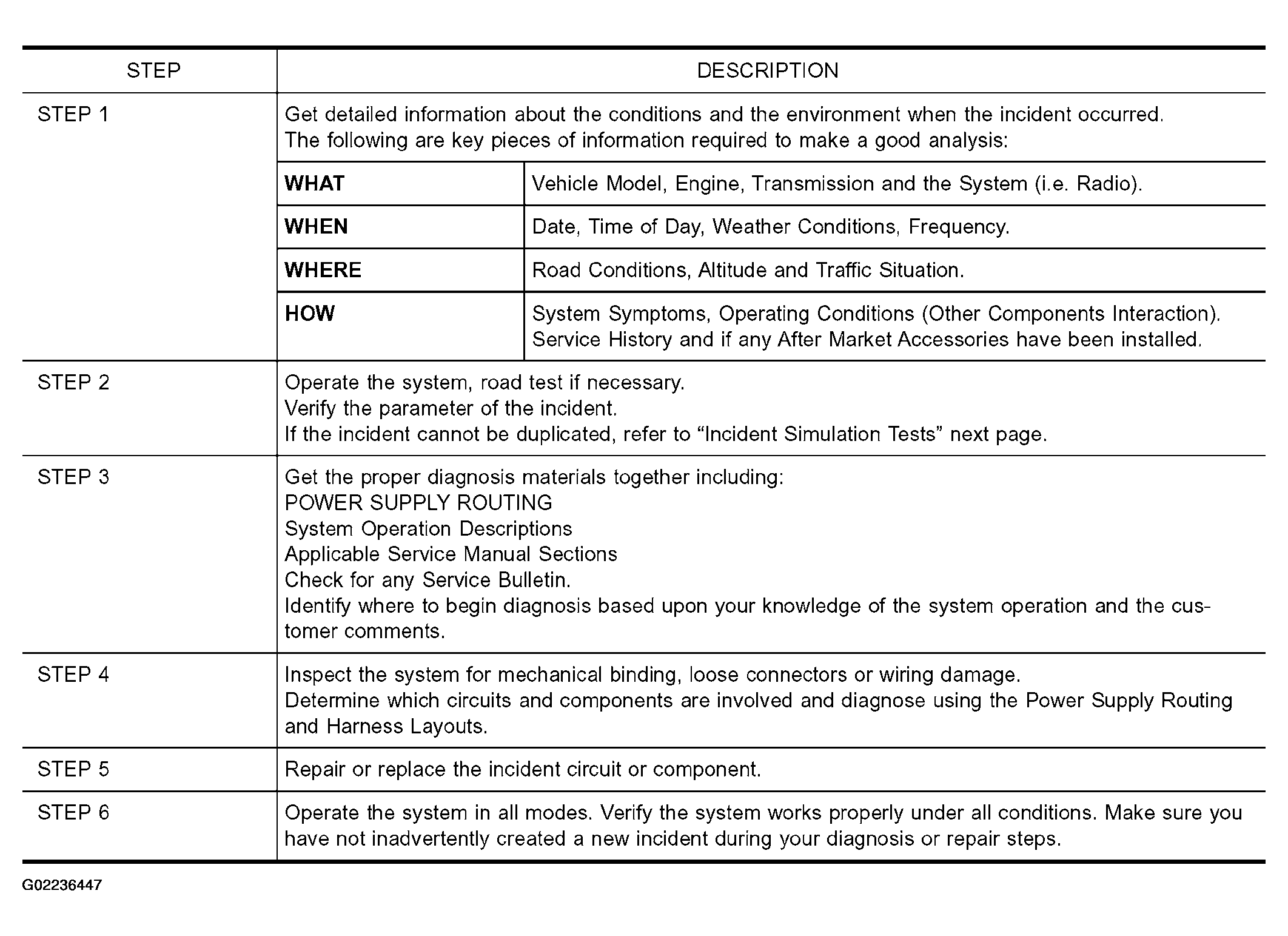

Fig 2: Displaying Electrical Incident Work Flow Procedure Description Table
G02236447Courtesy of NISSAN MOTOR CO., U.S.A.
