Removal and Installation of NAVI Switch

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove audio unit and display unit assembly. Refer to INSTRUMENT PANEL ASSEMBLY .
  3. Remove screws (2) and remove NAVI switch from cluster lid C.

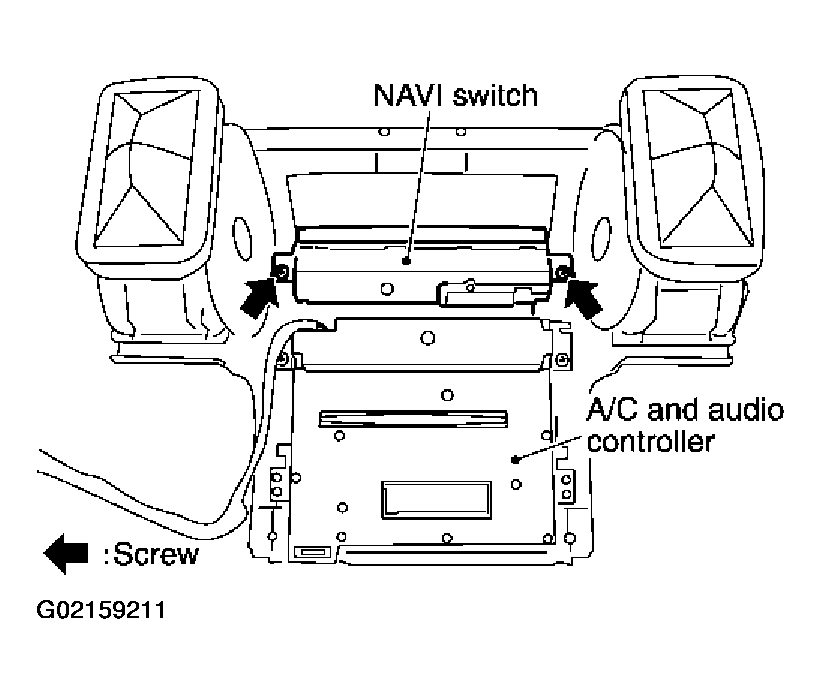

    Fig 1: Removing Screws (2) And Remove NAVI Switch From Cluster Lid C
    G02159211Courtesy of NISSAN MOTOR CO., U.S.A.
