Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Within 5 seconds after turning ignition switch from OFF to ON, press function switches 1 and 6 simultaneously, and hold them for 5 seconds or more.
  2. When self-diagnosis is actuated, all segments on display are displayed and mode 1 is active.
  3. Each time AUDIO switch is pressed, diagnosis mode switches. (MODE 2 to MODE 3 to MODE 4 to MODE 1)
  4. Turn ignition switch from ON to OFF, or press function switches 1 and 6 simultaneously and hold them for 5 seconds or more to complete the self-diagnosis.

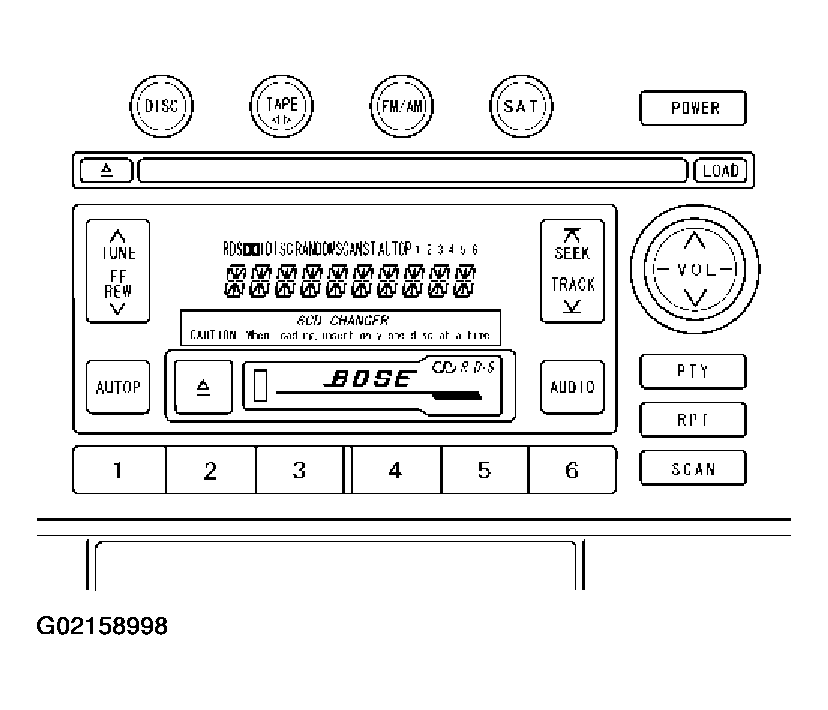

    Fig 1: Identifying Audio Control Panel
    G02158998Courtesy of NISSAN MOTOR CO., U.S.A.

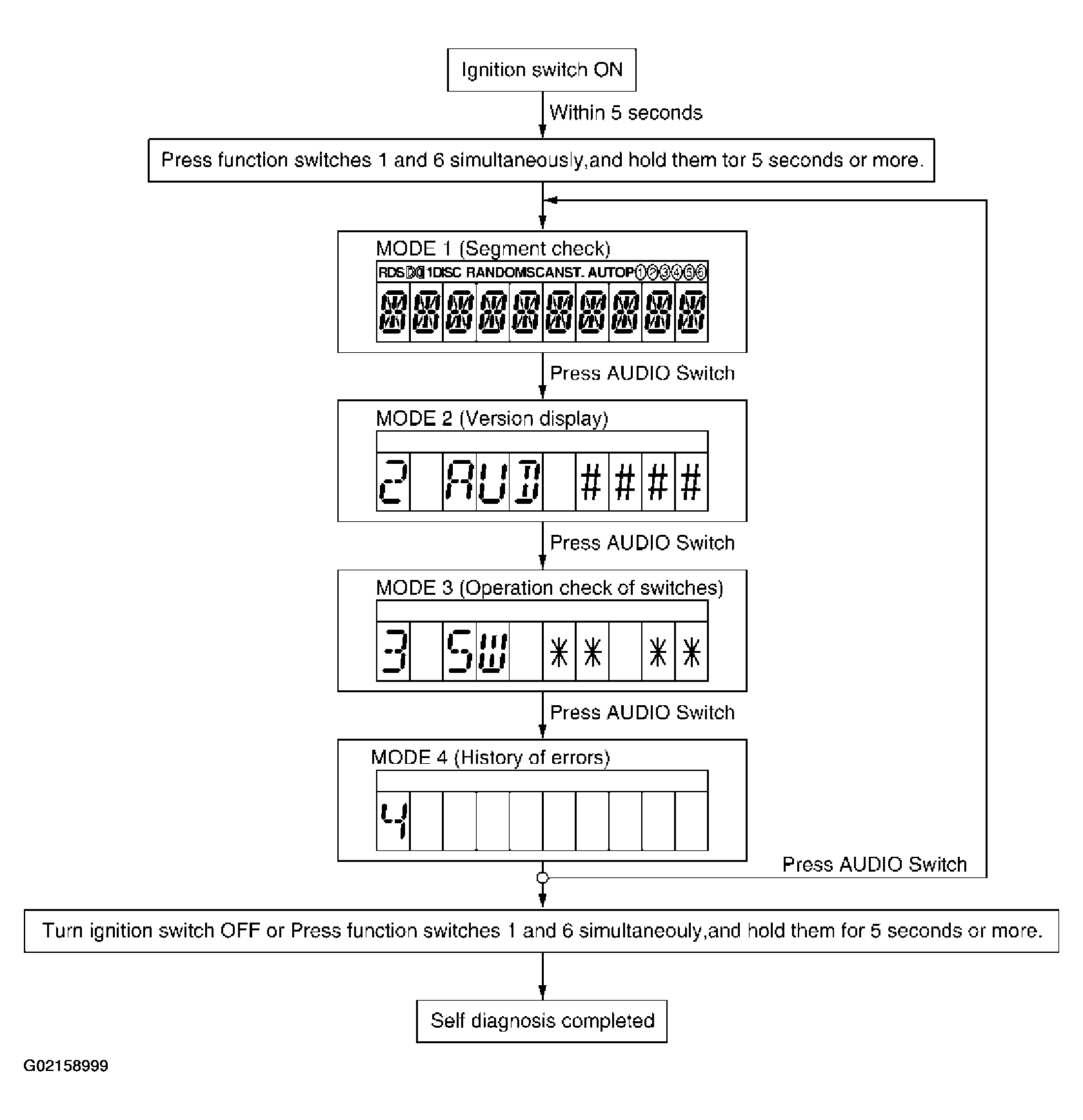

    Fig 2: Self Diagnosis Flow Chart
    G02158999Courtesy of NISSAN MOTOR CO., U.S.A.
