Mode 1

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Each time TUNE switch is pressed, segment display status is switched and missing segment is checked.

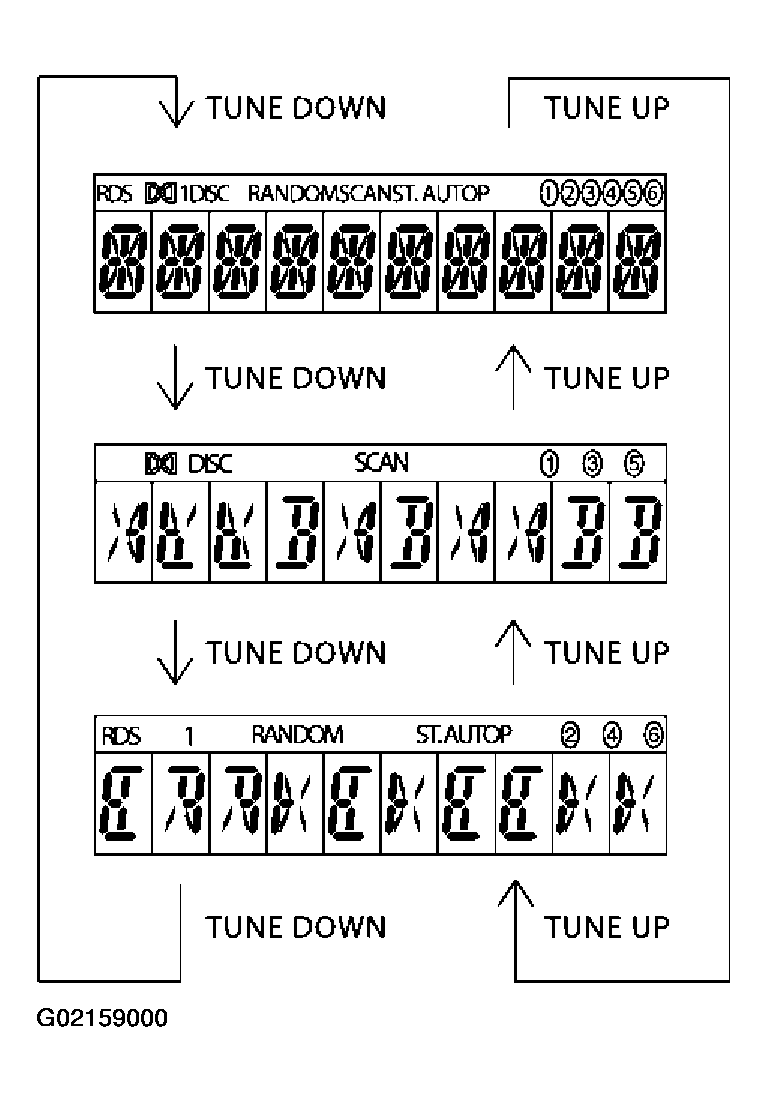

Fig 1: Locating Operation Procedure For Mode 1
G02159000Courtesy of NISSAN MOTOR CO., U.S.A.
