Removal And Installation For A/C And Audio Controller
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Remove audio unit and display unit assembly (with navigation system) from cluster lid C.
Remove screws (3) and remove A/C and audio controller.

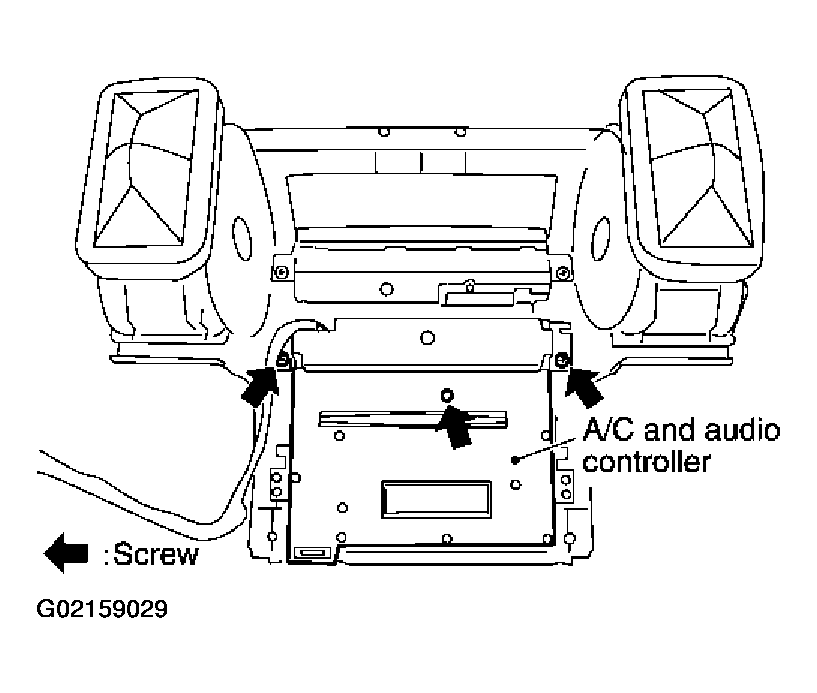

Fig 1: Removing Screws (3) And Remove A/C And Audio Controller
