Disassembly And Assembly Of A/C And Audio Controller

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

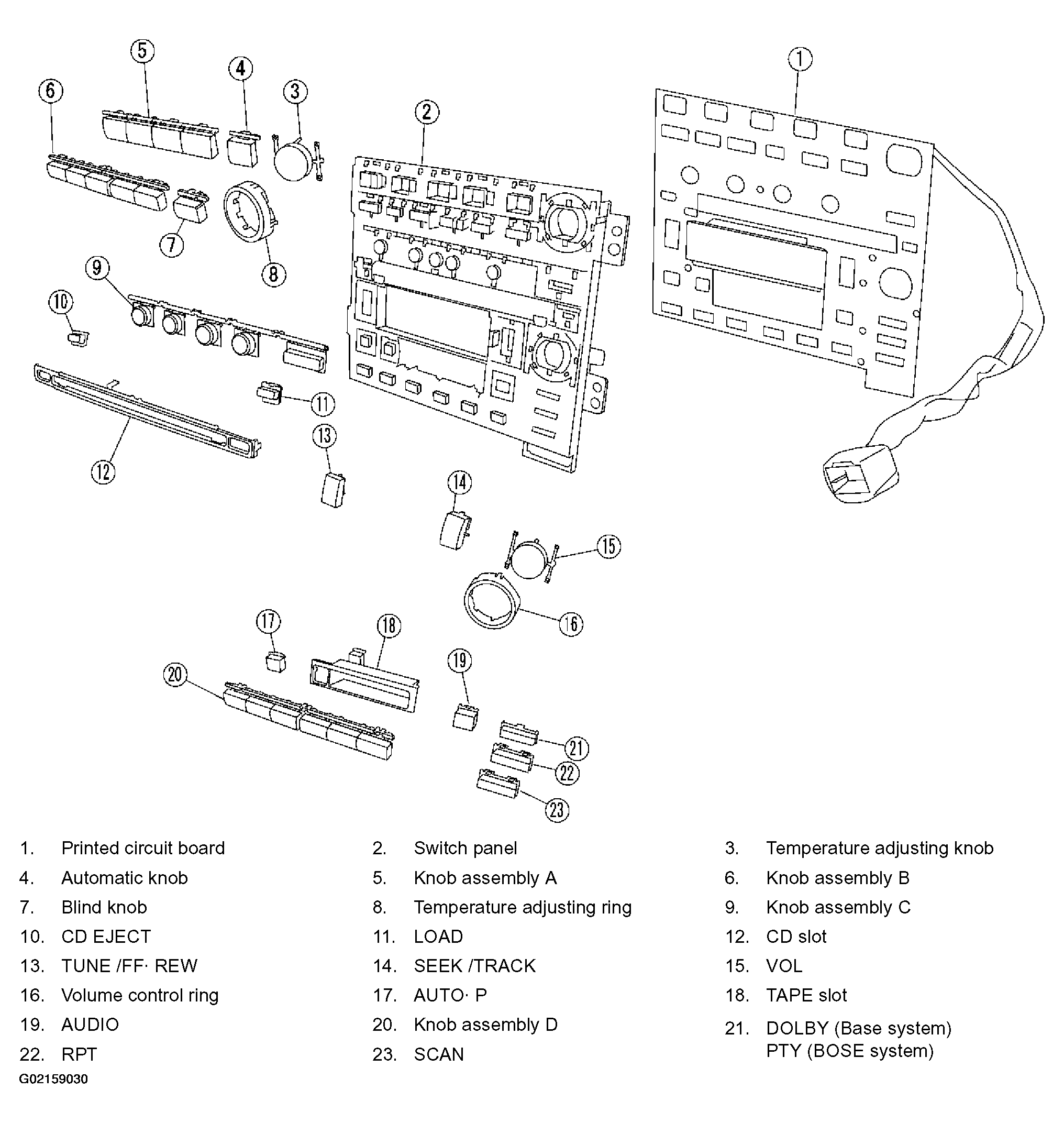

Fig 1: Exploded View Of A/C And Audio Controller Unit
G02159030Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws (12), and remove printed circuit board.
    CAUTION:
    • Be sure not to damage printed circuit board by exposure.
    Fig 2: Removing Screws (12), And Remove Printed Circuit Board
    G02159031Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove switches from back surface of switch panel using.

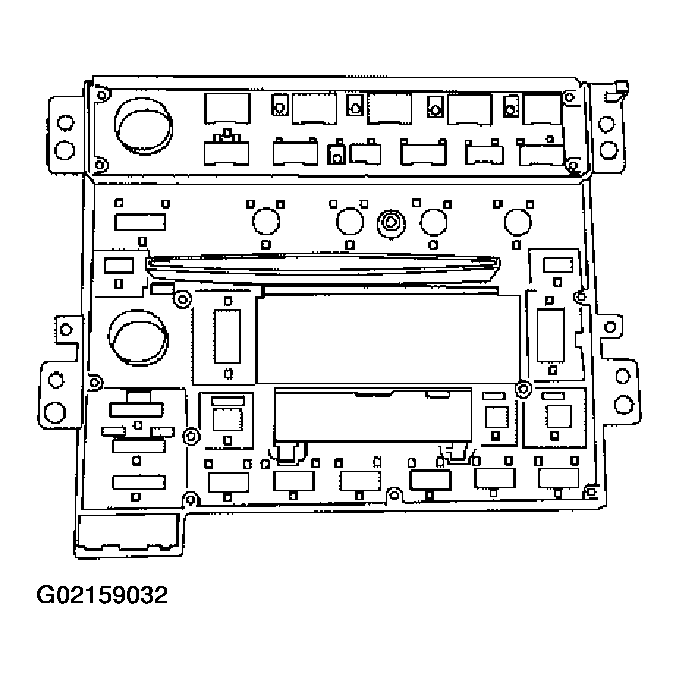

    Fig 3: Removing Switches From Back Surface Of Switch Panel
    G02159032Courtesy of NISSAN MOTOR CO., U.S.A.
