Shift Control

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

If the contact surface on striking lever, fork rod, fork, etc. has excessive wear, abrasion, bend, or any other damage, replace the components.

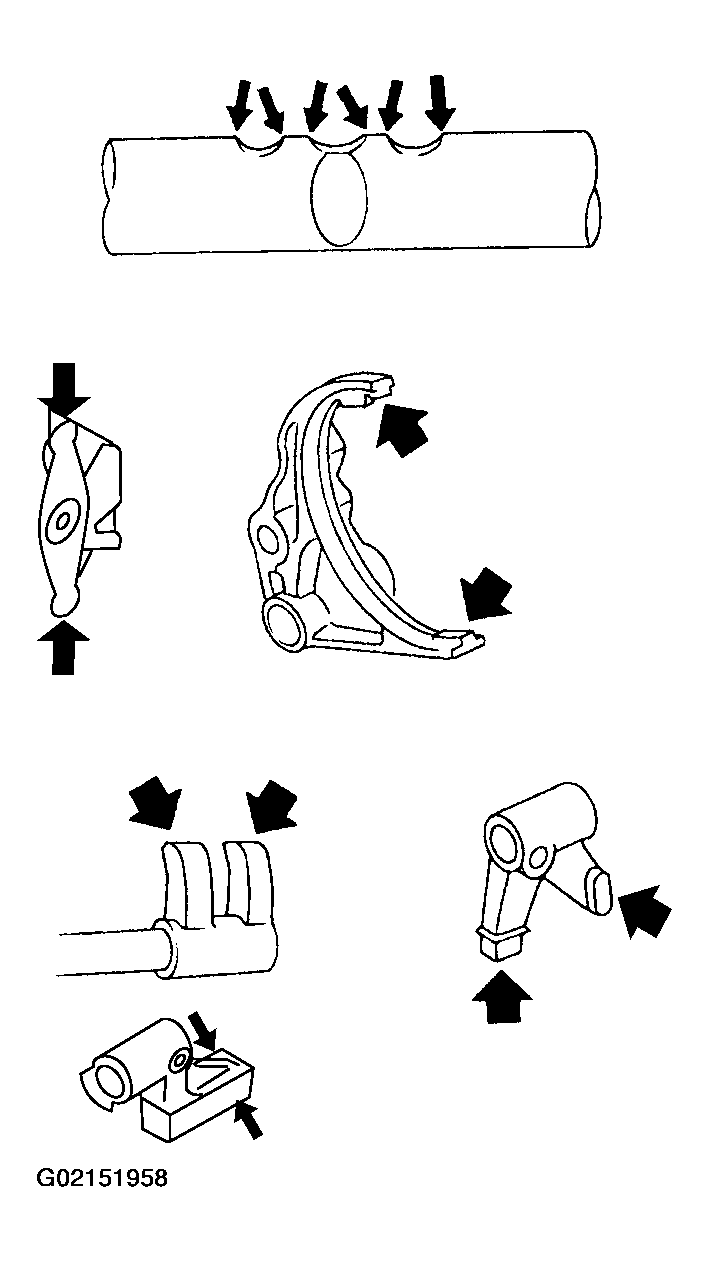

Fig 1: Inspecting Shift Control
G02151958Courtesy of NISSAN MOTOR CO., U.S.A.
