Steering Linkage

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

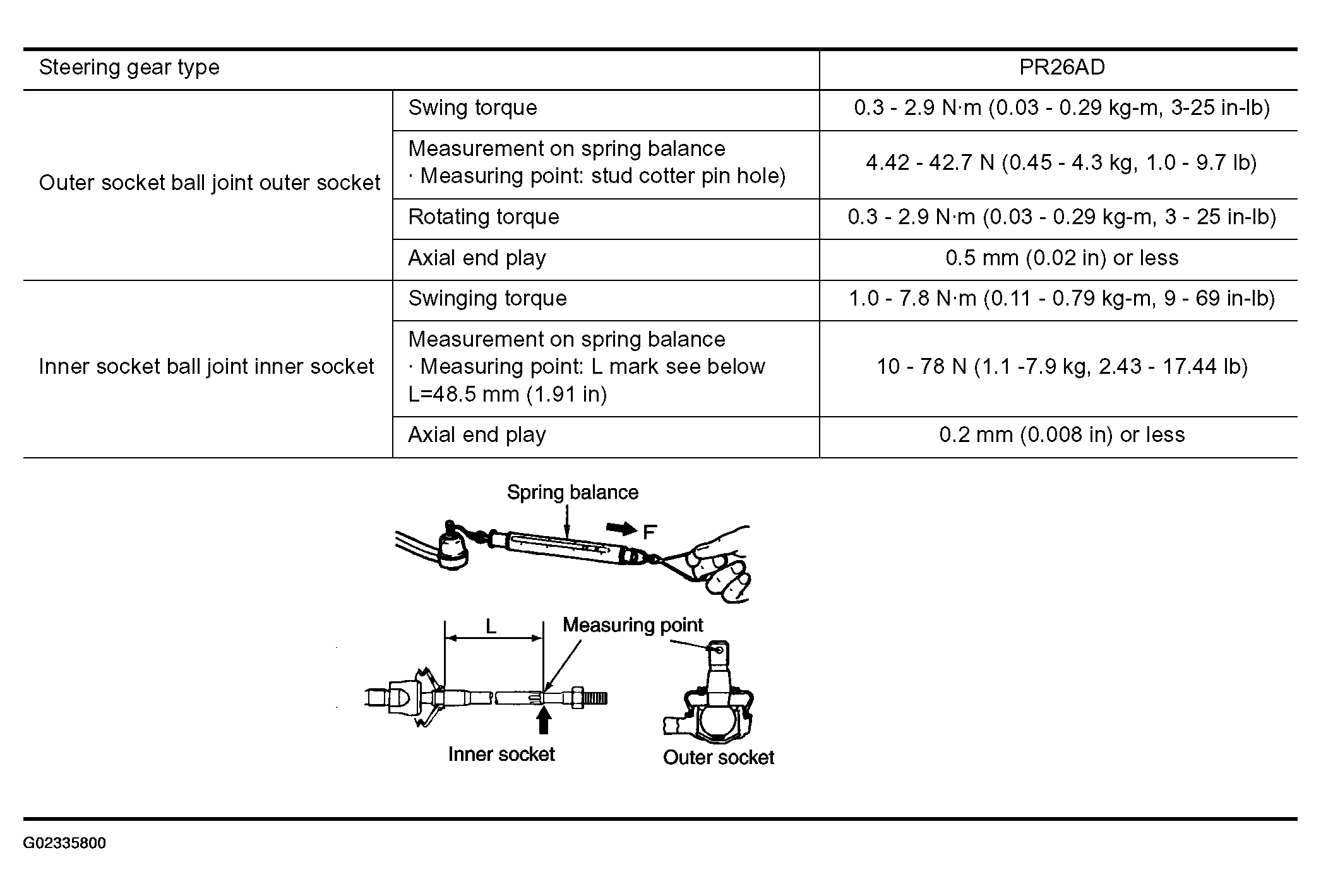

Fig 1: Steering Linkage Specification Chart (1 Of 2)
G02335800Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Steering Linkage Specification Chart (2 Of 2)
G02335801Courtesy of NISSAN MOTOR CO., U.S.A.
