Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spiral cable assembly. Refer to SPIRAL CABLE in SUPPLEMENTAL RESTRAINT SYSTEM article. .
  2. Remove steering angle sensor from spiral cable assembly.

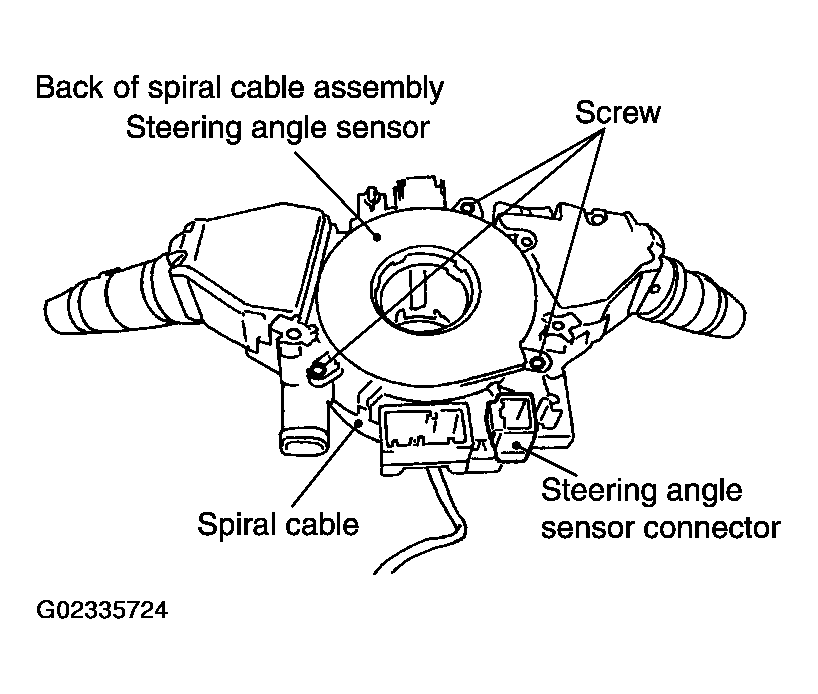

    Fig 1: Removing/Installing Steering Angle Sensor
    G02335724Courtesy of NISSAN MOTOR CO., U.S.A.
