WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

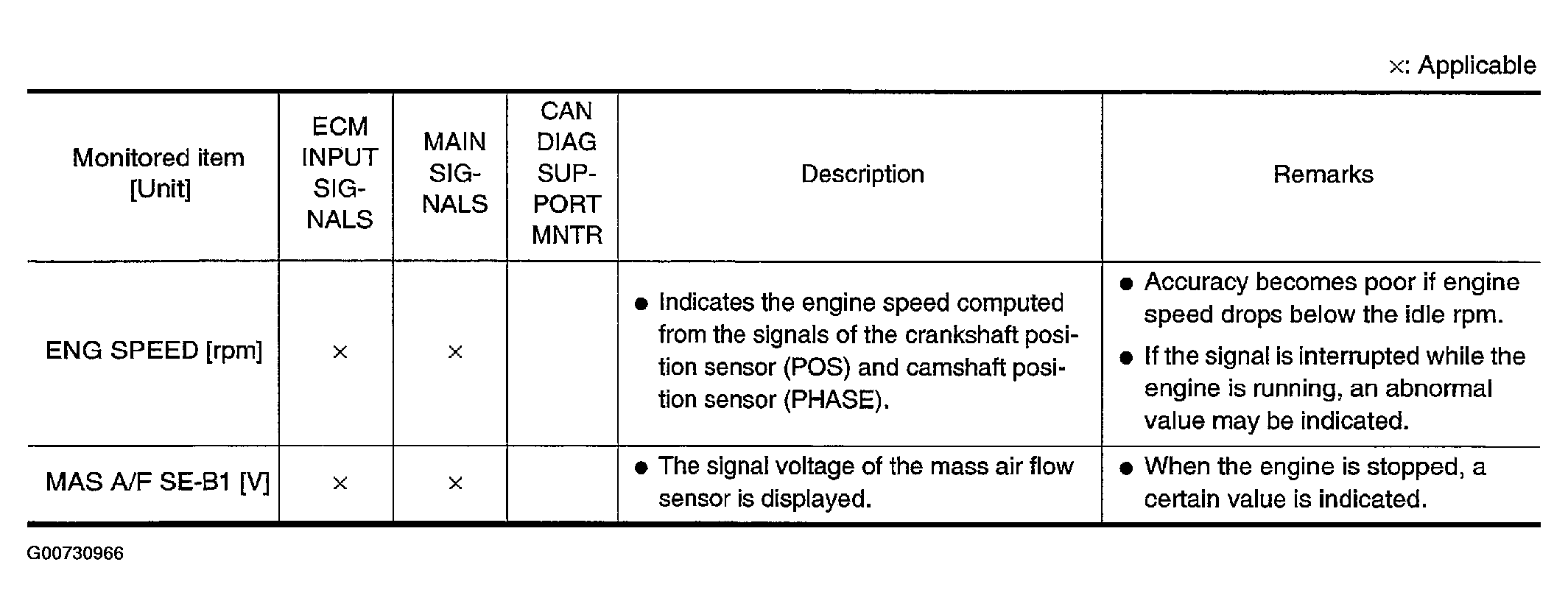

Fig 1: Data Monitoring Mode - Monitored Item (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Data Monitoring Mode - Monitored Item (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitoring Mode - Monitored Item (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Data Monitoring Mode - Monitored Item (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Data Monitoring Mode - Monitored Item (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Data Monitoring Mode - Monitored Item (6 Of 6)
