Limit Switch Circuit Check (Passenger Side)

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check Power Window Sub-Switch (Passenger Side) Limit Signal
1. Turn ignition switch ON.
2. Check voltage between power window motor (front passenger side) connector and ground.

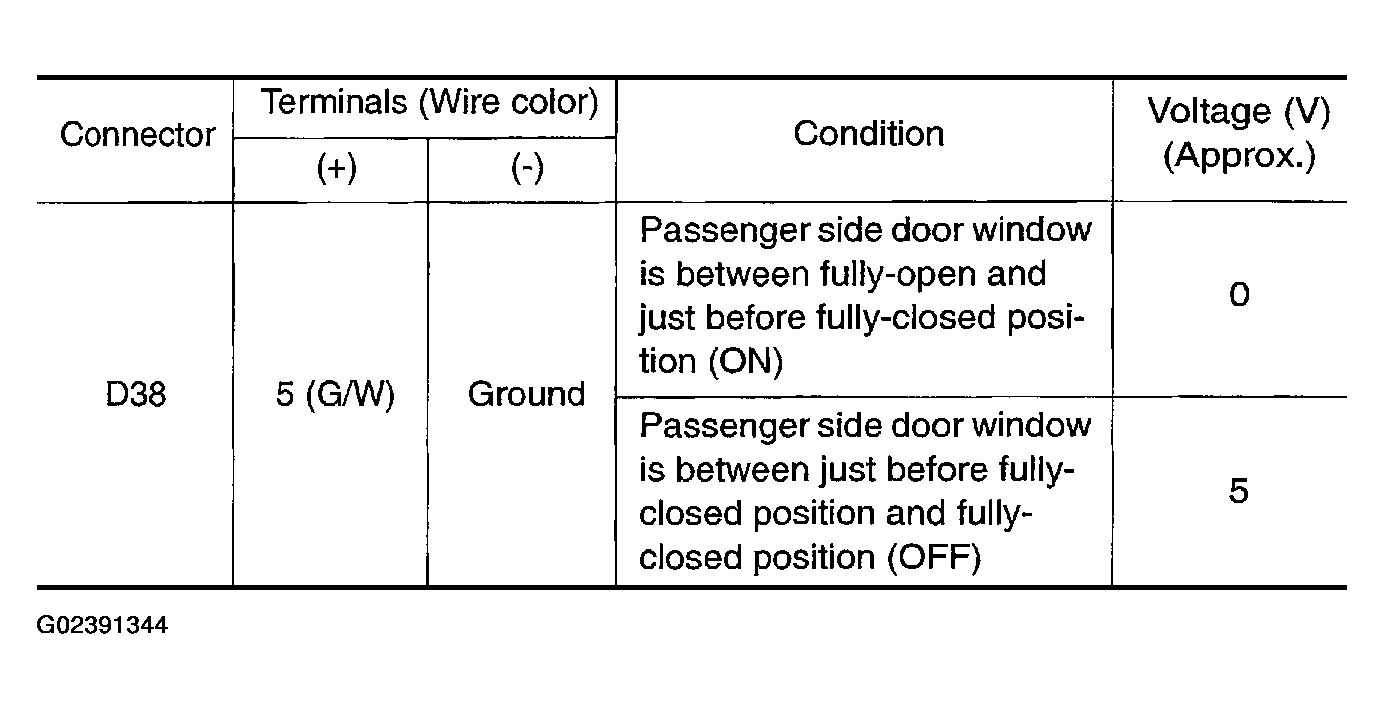

  Fig 1: Voltage Measuring Table - Between Power Window Motor (Front Passenger Side) Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Limit sw circuit is OK.
2. NG : GO TO 2.
Fig 2: Checking Voltage Between Power Window Motor (Front Passenger Side) Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Limit Switch Ground Circuit
1. Turn ignition switch OFF.
2. Disconnect power window motor (front passenger side) connector.
3. Check continuity between power window motor (front passenger side) connector D38 terminal 6 and ground.
  1. 6 (W/B) - Ground: Continuity should exist.
OK or NG
1. OK : GO TO 4
2. NG : GO TO 3
Fig 3: Checking Continuity Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 6 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Harness Continuity
1. Disconnect power window sub-switch (front passenger side) connector.
2. Check continuity between power window motor (front passenger side) connector D38 terminal 6 and power window sub-switch (front passenger side) connector D36 terminal 20.
  1. 6 (W/B) - 20 (W/B): Continuity should exist.
OK or NG
1. OK : Replace power window sub-switch (front passenger side).
2. NG : Repair or replace harness between power window sub-switch and power window motor (front passenger side).
Fig 4: Checking Continuity Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 6 And Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 20
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER WINDOW SUB-SWITCH (FRONT PASSENGER SIDE) OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window sub-switch (front passenger side) connector D36 terminal 16 and ground.
  1. 16 (G/W) - Ground: Approx. 5V
OK or NG
1. OK : GO TO 5
2. NG : Replace power window sub-switch (front passenger side).
Fig 5: Checking Voltage Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 16 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Harness Continuity
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch (front passenger side) connector.
3. Check continuity between power window sub-switch (front passenger side) connector D36 terminal 16 and power window motor (front passenger side) connector D38 terminal 5.
  1. 16 (G/W) - 5 (G/W): Continuity should exist.
OK or NG
1. OK : GO TO 6
2. NG : Repair or replace harness between power window sub-switch and power window motor (front passenger side).
Fig 6: Checking Continuity Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 16 And Power Window Motor (Front Passenger Side) Connector D38 Terminal 5
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Limit Switch
1. Connect power window motor (front passenger side) and power window sub-switch (front passenger side) connector.
2. Turn ignition switch ON.
3. Check continuity between power window motor (front passenger side) connector D38 terminal 5 and 6.

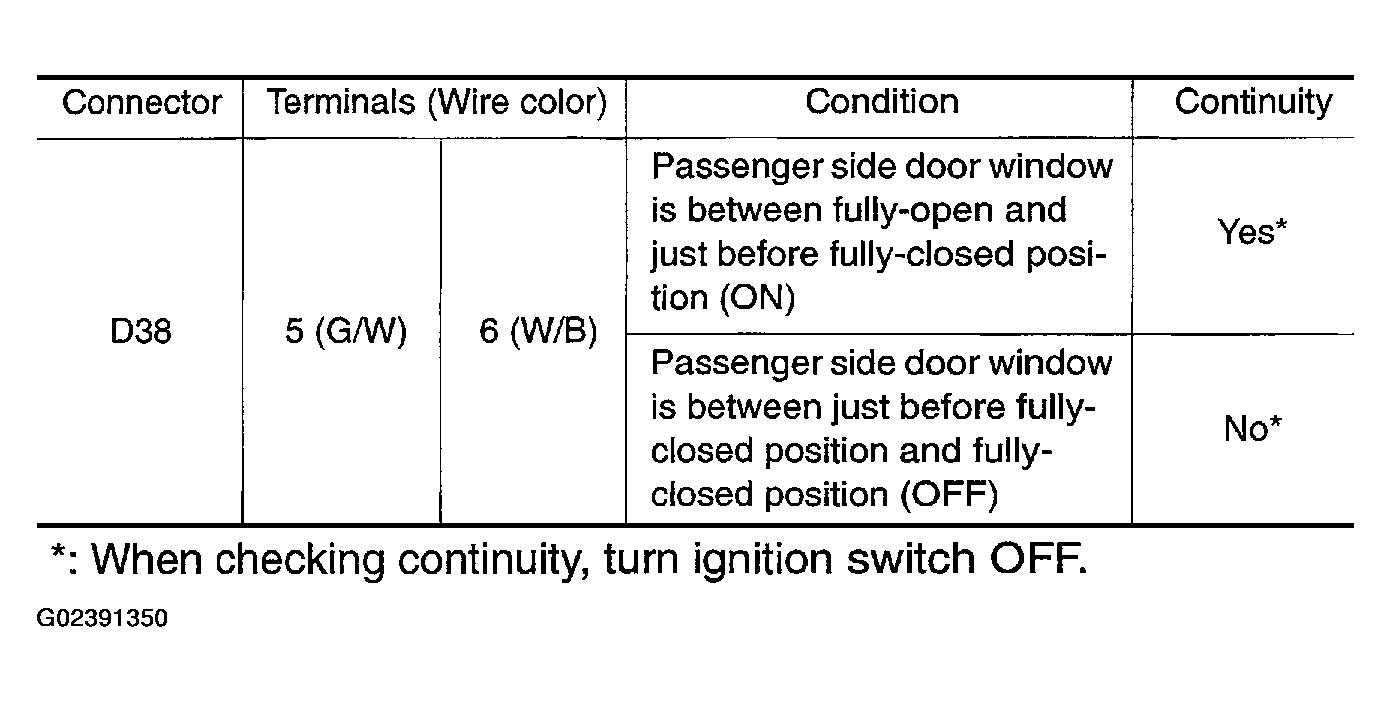

  Fig 7: Continuity Measuring Table - Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 5 And 6
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK : Check the condition of the harness and the connector.
2. NG : Replace power window motor (front passenger side).
Fig 8: Checking Continuity Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 5 And 6
Courtesy of NISSAN MOTOR CO., U.S.A.
