Engine Control Harness

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

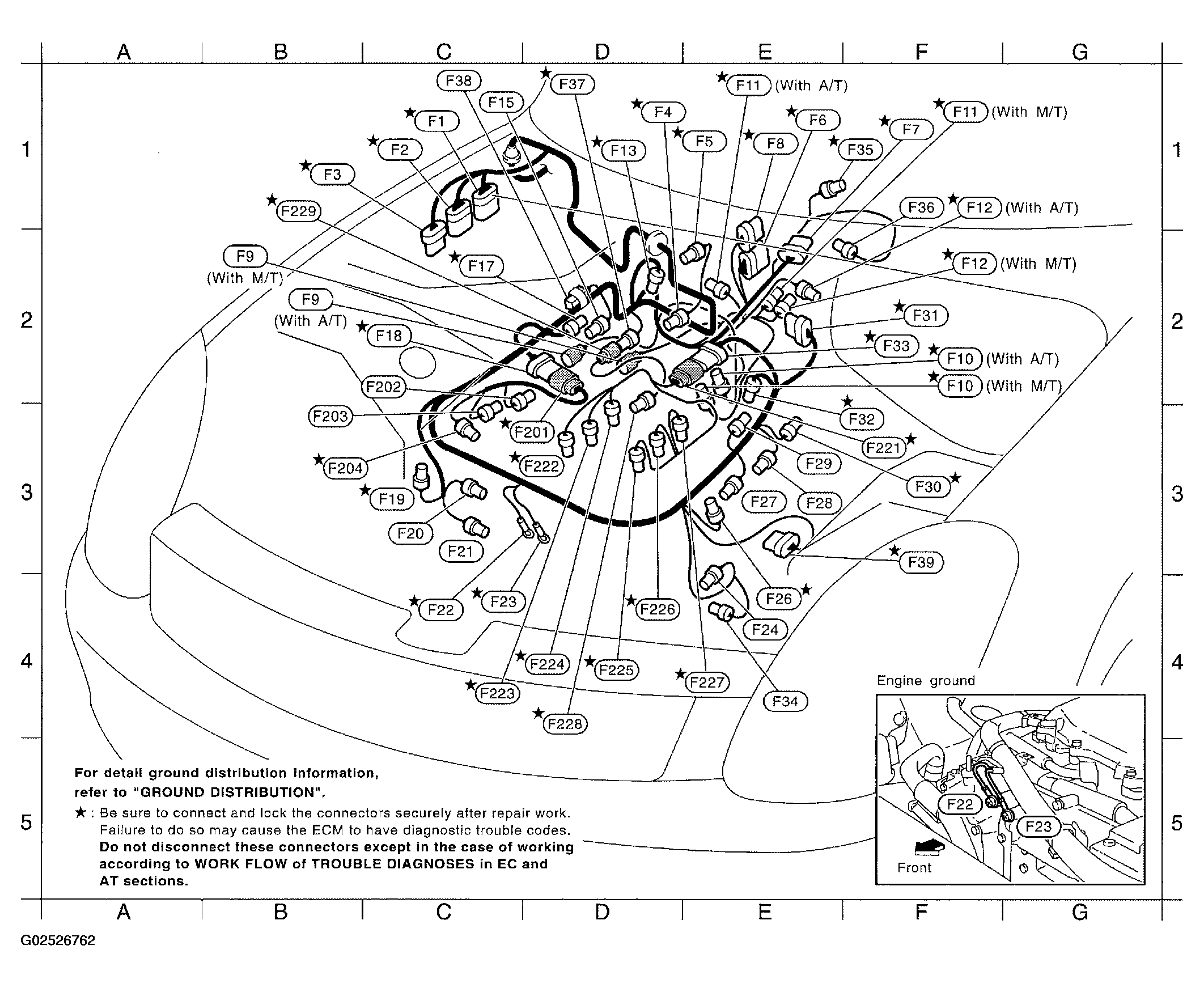

Fig 1: Engine Control Harness (1 Of 2)
G02526762Courtesy of NISSAN MOTOR CO., U.S.A.

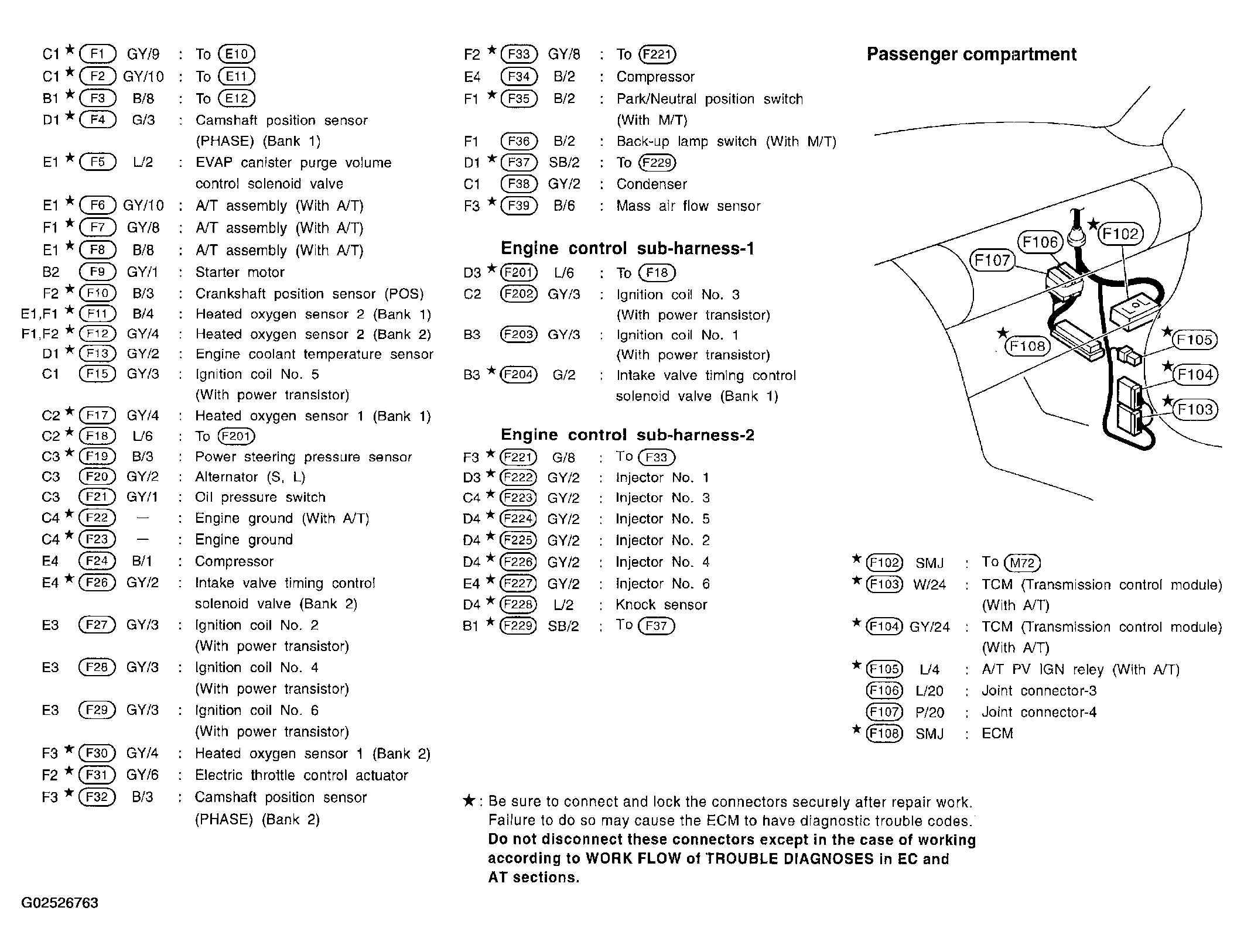

Fig 2: Engine Control Harness (2 Of 2)
G02526763Courtesy of NISSAN MOTOR CO., U.S.A.
