With CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine.

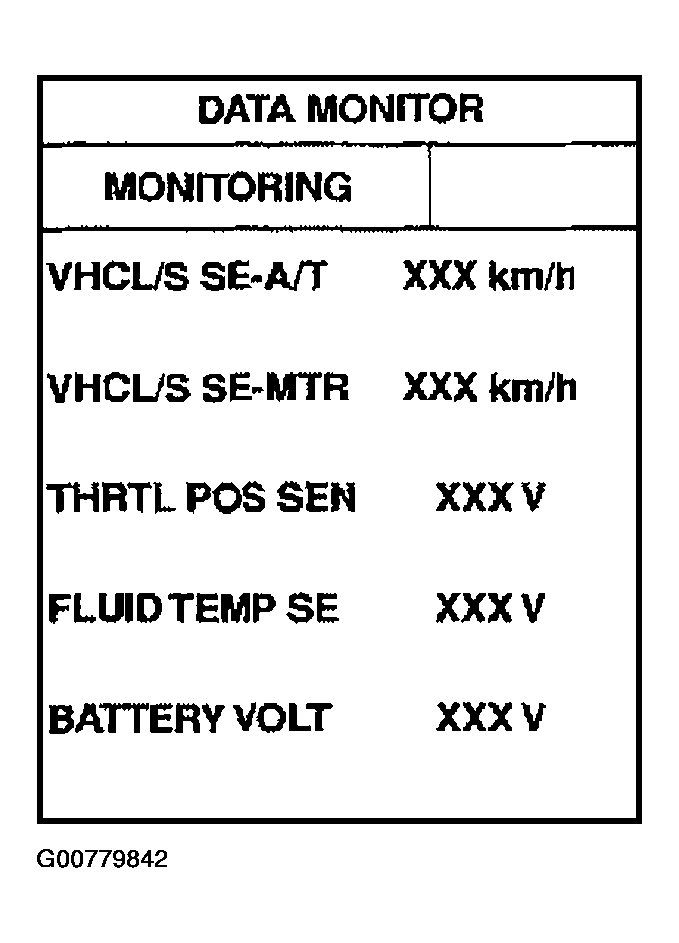

- Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
- Read out the value of "VHCL/S SE MTR" while driving.
Check the value changes according to driving speed.
Courtesy of NISSAN MOTOR CO., U.S.A.
