3. Check Control Valve

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble control valve assembly. Refer to "CONTROL VALVE ASSEMBLY ".
Check to ensure that:

Valve, sleeve and plug slide along valve bore under their own weight.
Valve, sleeve and plug are free from burrs, dents and scratches.
Control valve springs are free from damage, deformation and fatigue.
Hydraulic line is free from obstacles.

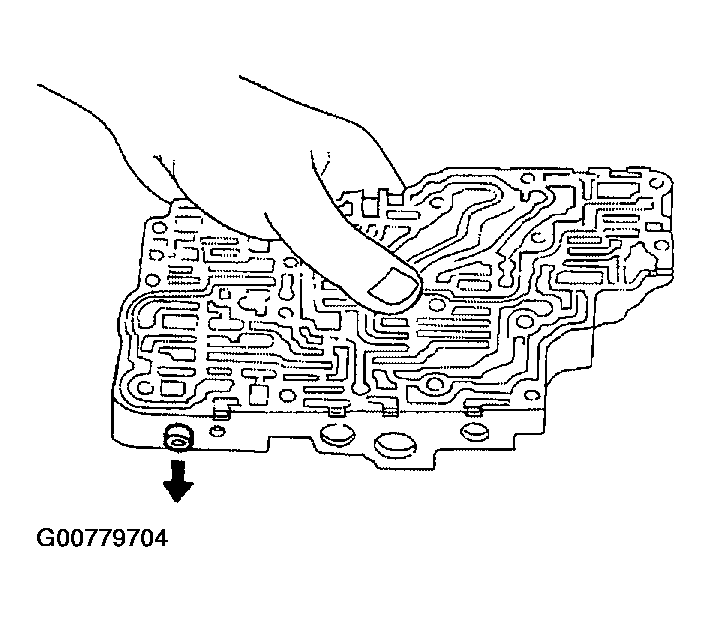

Fig 1: Checking Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.
NG : Repair control valve assembly.
