Intake Valve Timing Control Solenoid Valve

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect intake valve timing control solenoid valve harness connector.
  2. Check resistance between intake valve timing control solenoid valve terminals as follows.

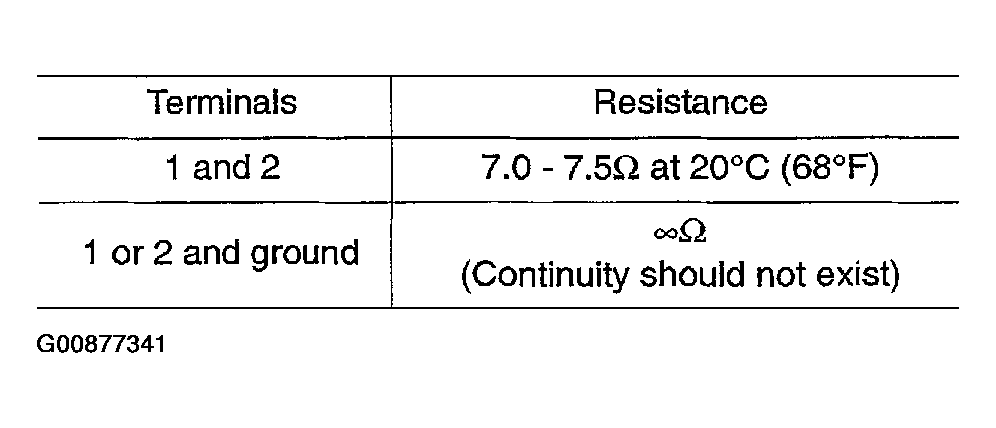

Fig 1: Test Specifications
G00877341Courtesy of NISSAN MOTOR CO., U.S.A.

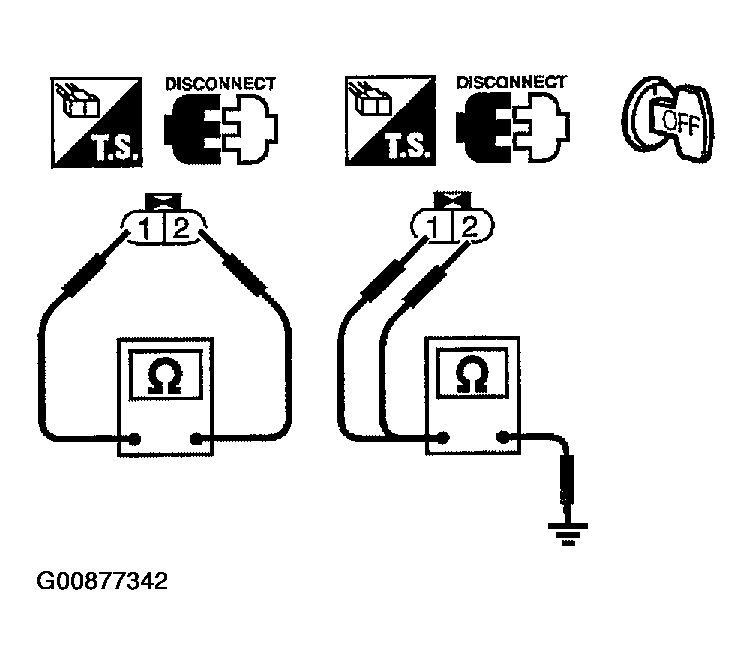

Fig 2: Check resistance
G00877342Courtesy of NISSAN MOTOR CO., U.S.A.
