WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

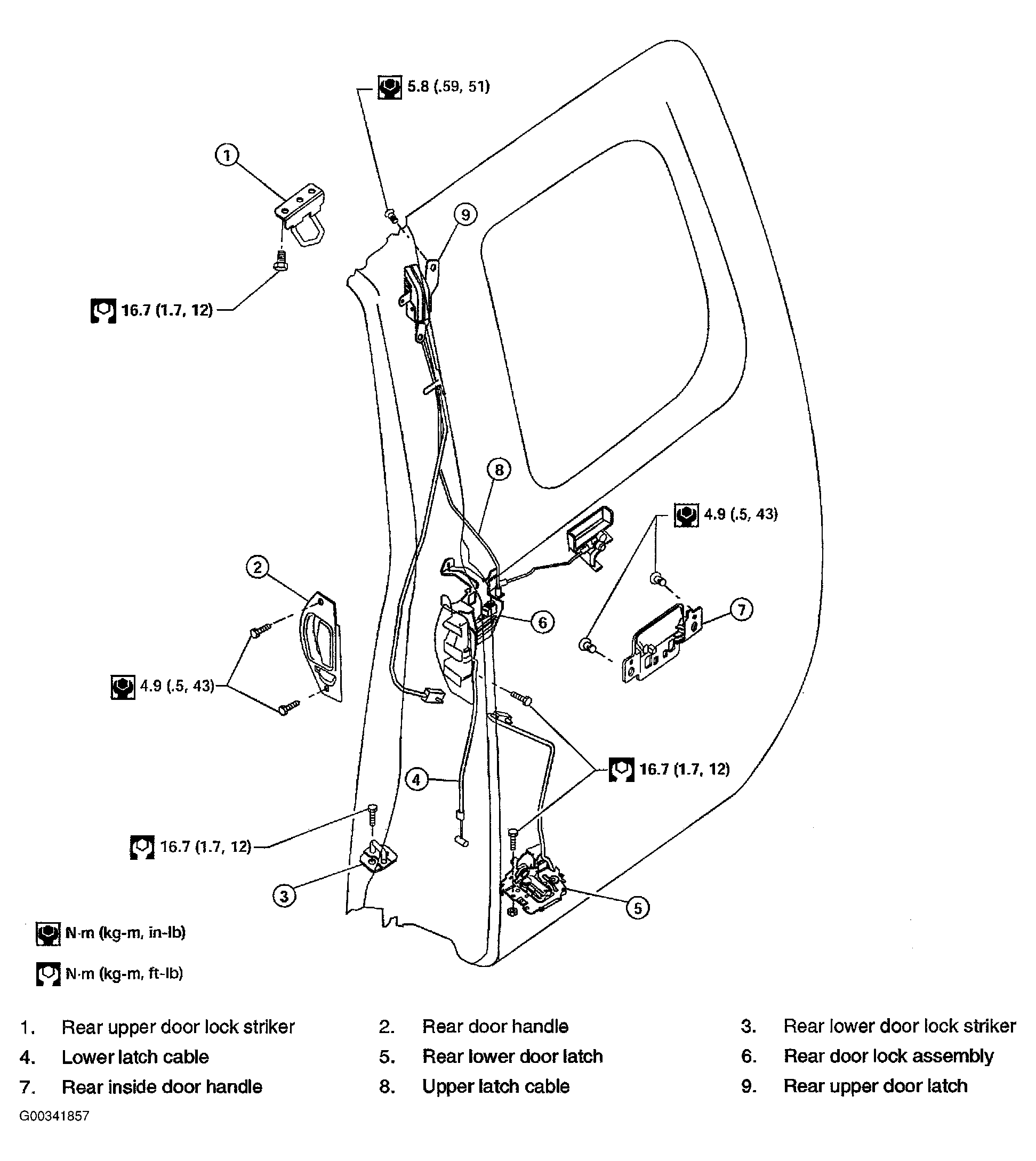

Fig 1: Exploded View Of Rear Door Lock Components (King Cab)
Courtesy of NISSAN MOTOR CO., U.S.A.

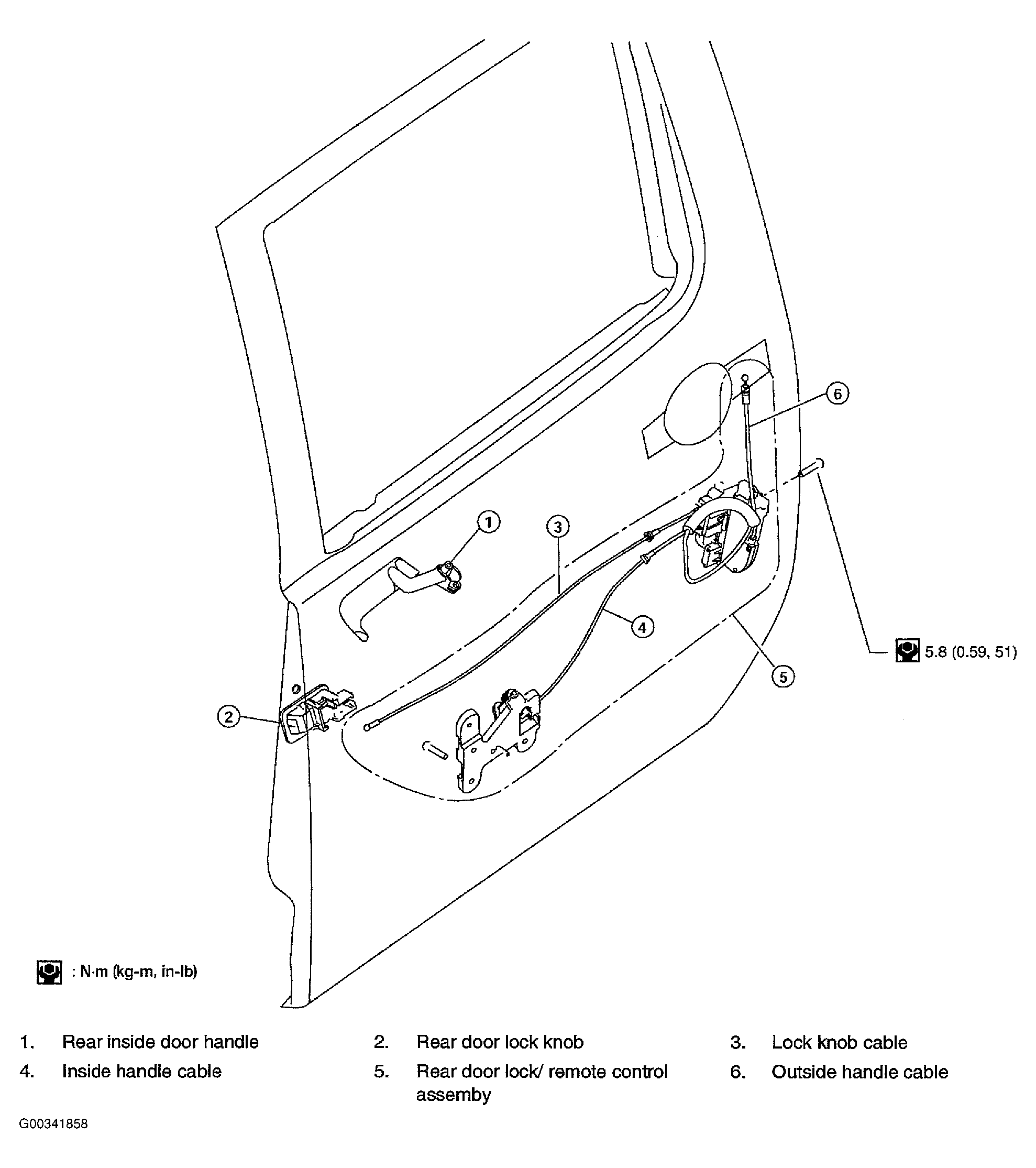

Fig 2: Exploded View Of Rear Door Lock Components (Crew Cab)
