Check Driver Seat Control Unit Fuse

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Make sure any of the following fuses in the driver seat control unit and automatic drive positioner control unit are not blown.

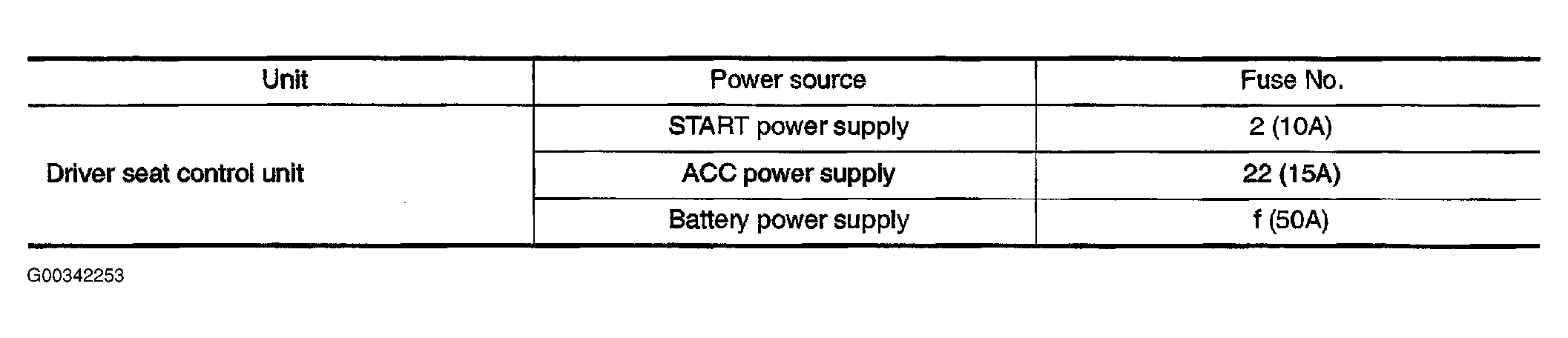

Fig 1: Identifying System Fuses
G00342253Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Refer to COMPONENT PARTS AND HARNESS CONNECTOR LOCATION  .

OK or NG

  1. OK >> GO TO 5.
  2. NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to COMPONENT PARTS AND HARNESS CONNECTOR LOCATION  .
