With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check operation with "LIFT RR PULSE" on the DATA MONITOR to make sure pulse changes

Fig 1: Data Monitor Chart
G00342323Courtesy of NISSAN MOTOR CO., U.S.A.

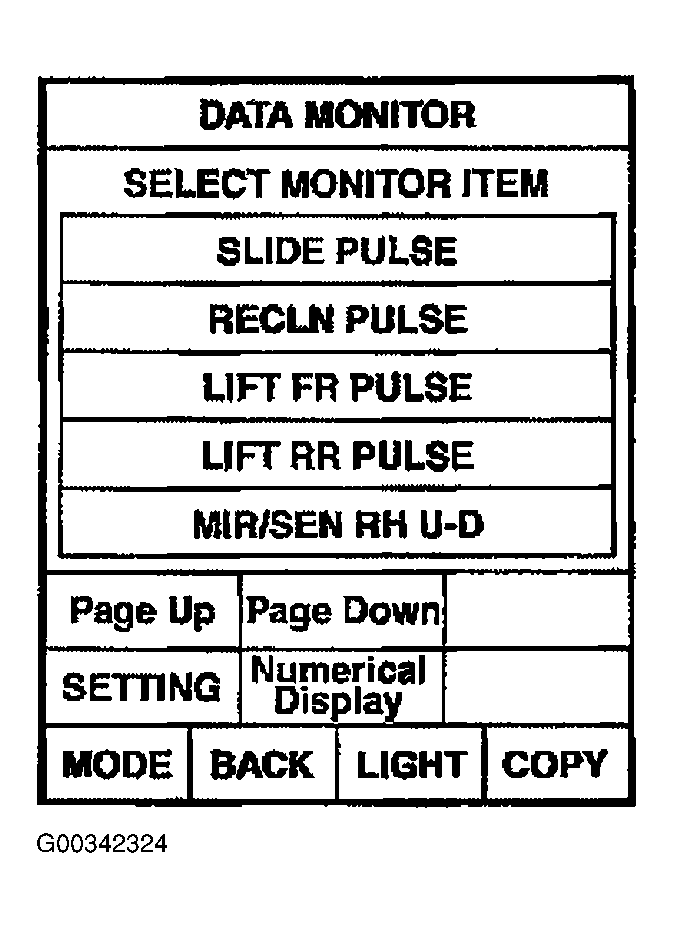

Fig 2: CONSULT-II Display
G00342324Courtesy of NISSAN MOTOR CO., U.S.A.
