With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Touch "BCM" with "DOOR SW DR" on the DATA MONITOR, check ON/OFF operation when the front door is open and closed.

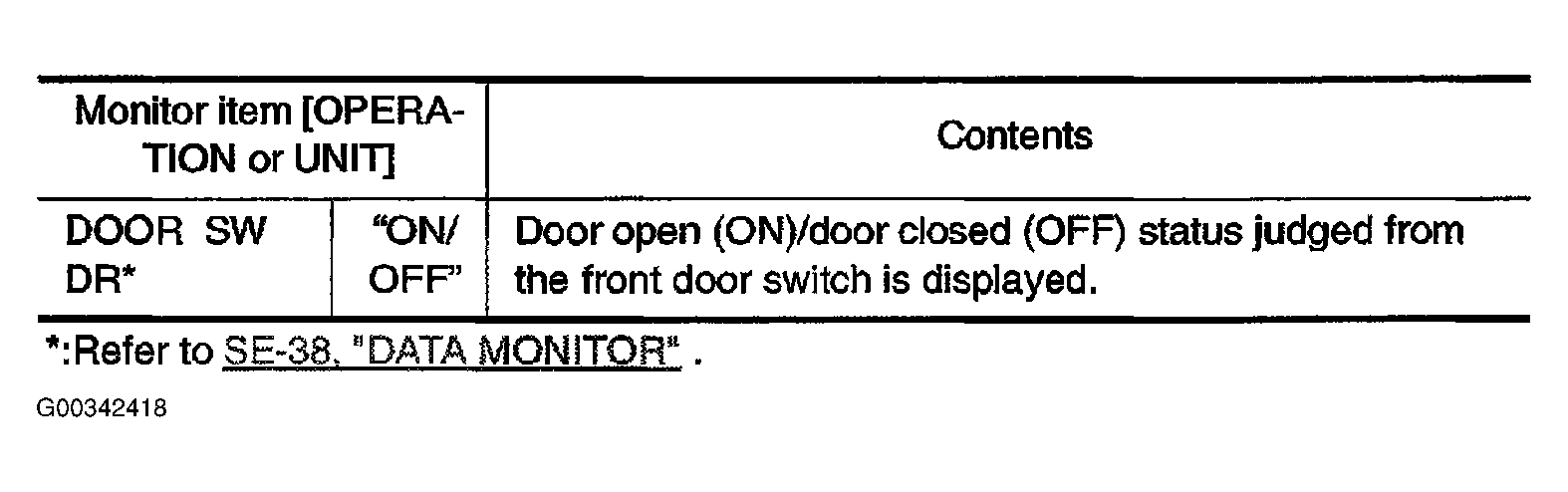

Fig 1: Data Monitor Chart
G00342418Courtesy of NISSAN MOTOR CO., U.S.A.

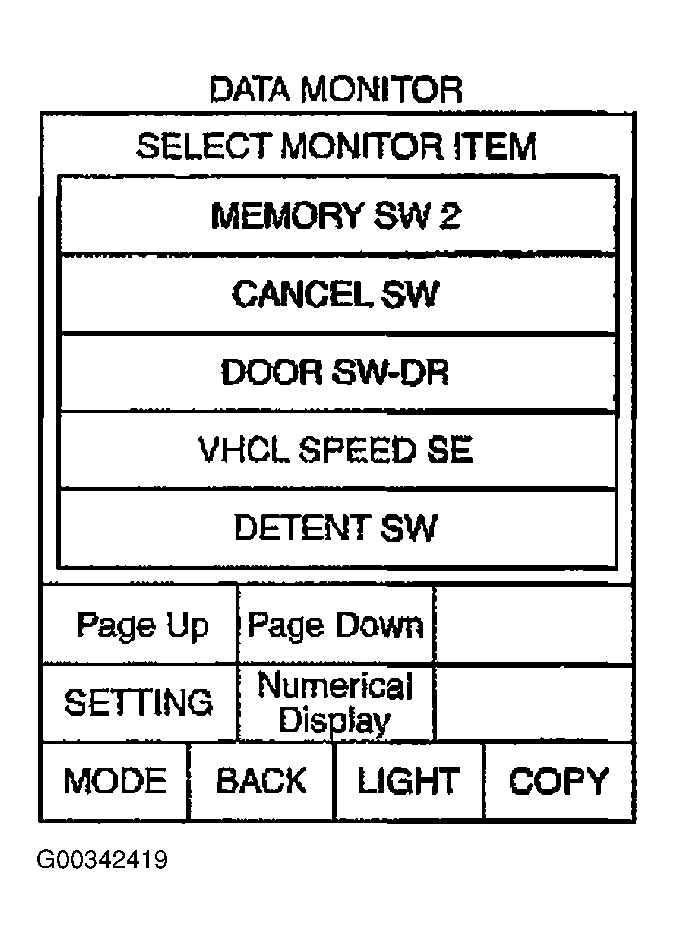

Fig 2: CONSULT-II Display
G00342419Courtesy of NISSAN MOTOR CO., U.S.A.
