Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ACC.
  2. Check voltage between automatic drive positioner control unit connector and ground.

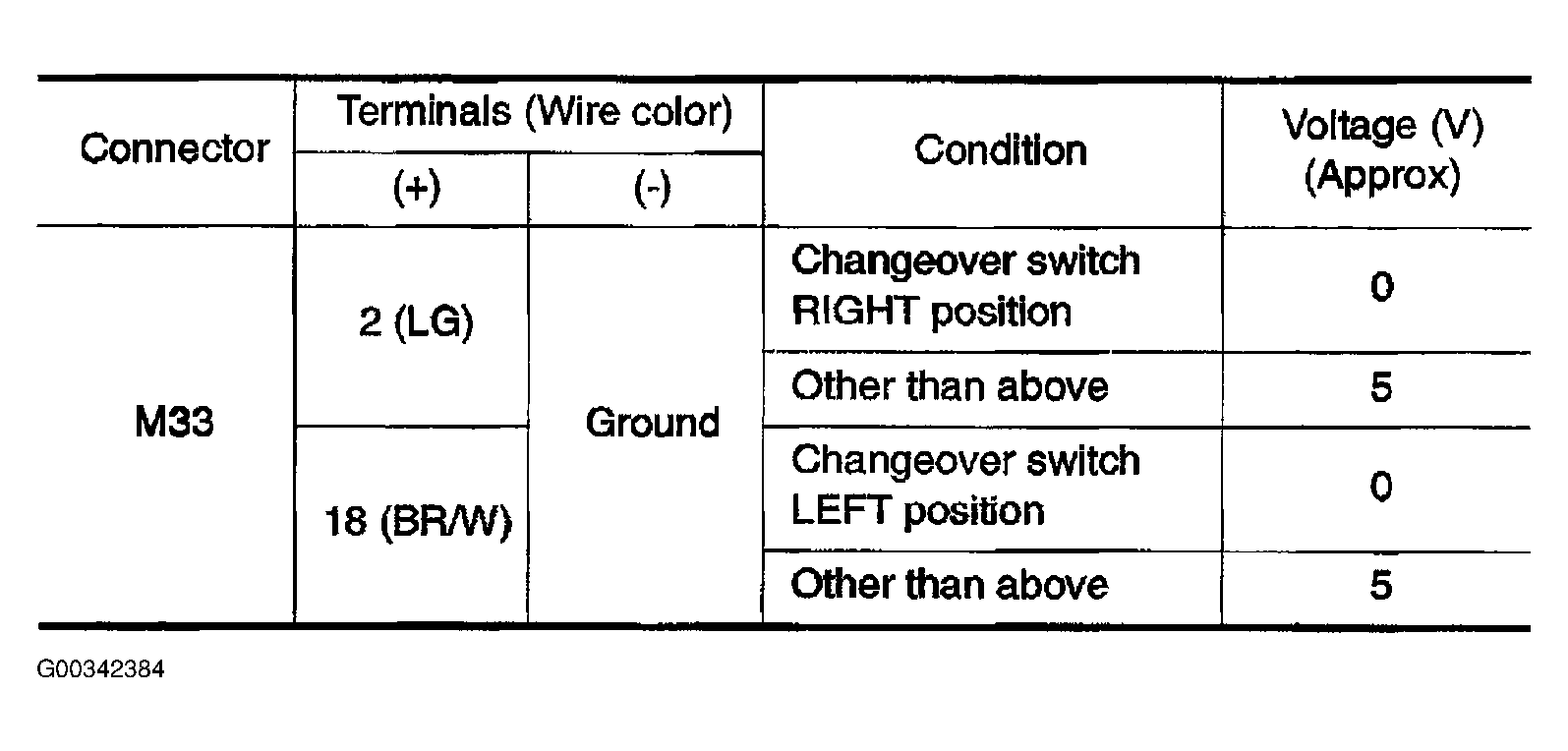

Fig 1: Voltage Chart
G00342384Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Checking Voltage
G00342385Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK >> Door mirror switch (changeover switch) is OK.
  2. NG >> GO TO 2.
