Vehicle Speed When Performing And Releasing Complete Lock-Up

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

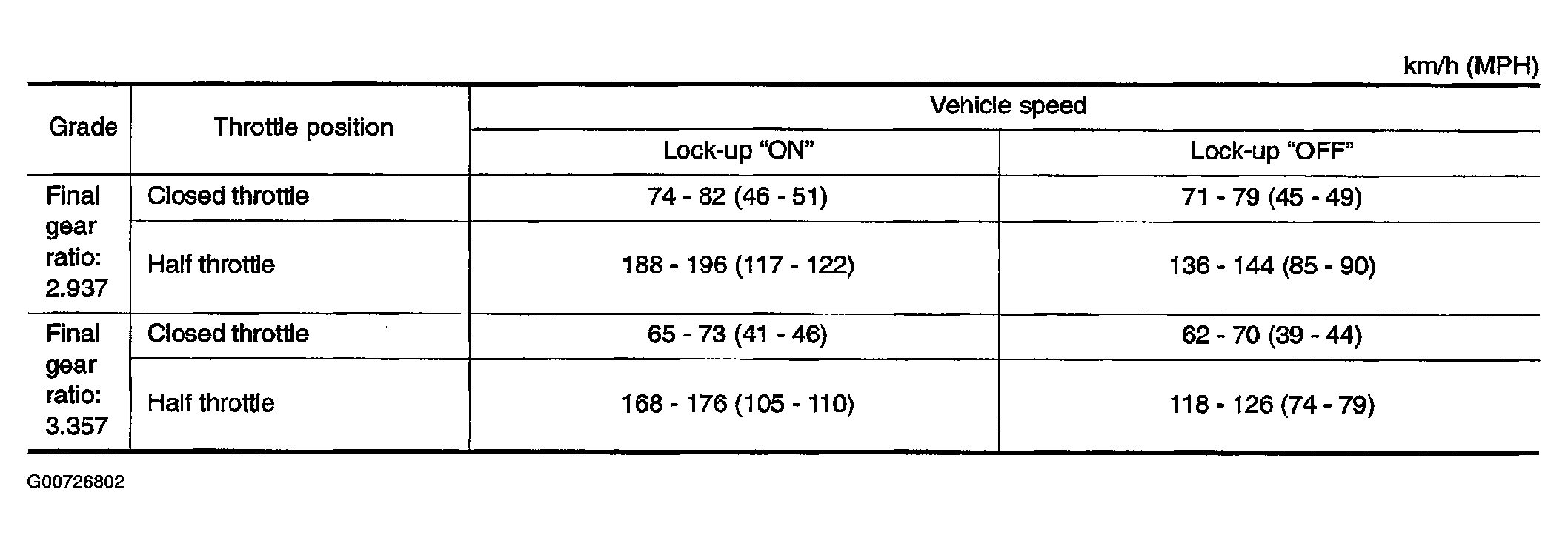

Fig 1: Vehicle Speed When Performing And Releasing Complete Lock-Up Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

At closed throttle, the accelerator opening is less than 1/8 condition.
At half throttle, the accelerator opening is 4/8 of the full opening.
