With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Start engine.
  4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.

    Selector lever: "D" position

  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

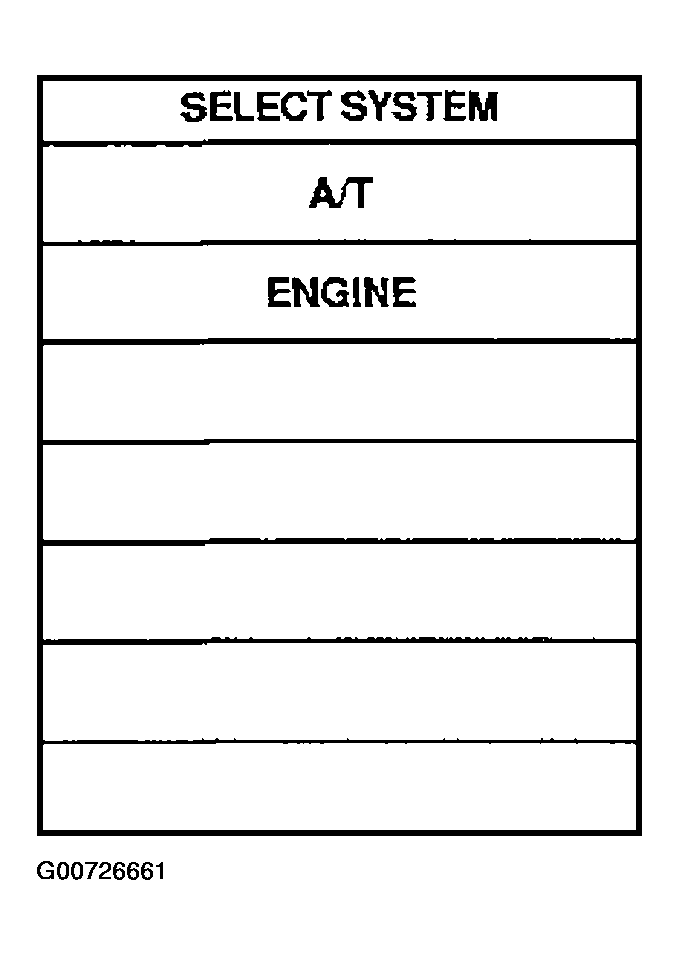

    Fig 1: CONSULT-II Display
    G00726661Courtesy of NISSAN MOTOR CO., U.S.A.
