Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK EXHAUST SYSTEM
Visually check exhaust tubes and muffler for dent.

OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace.
CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before the three way catalyst (manifold).

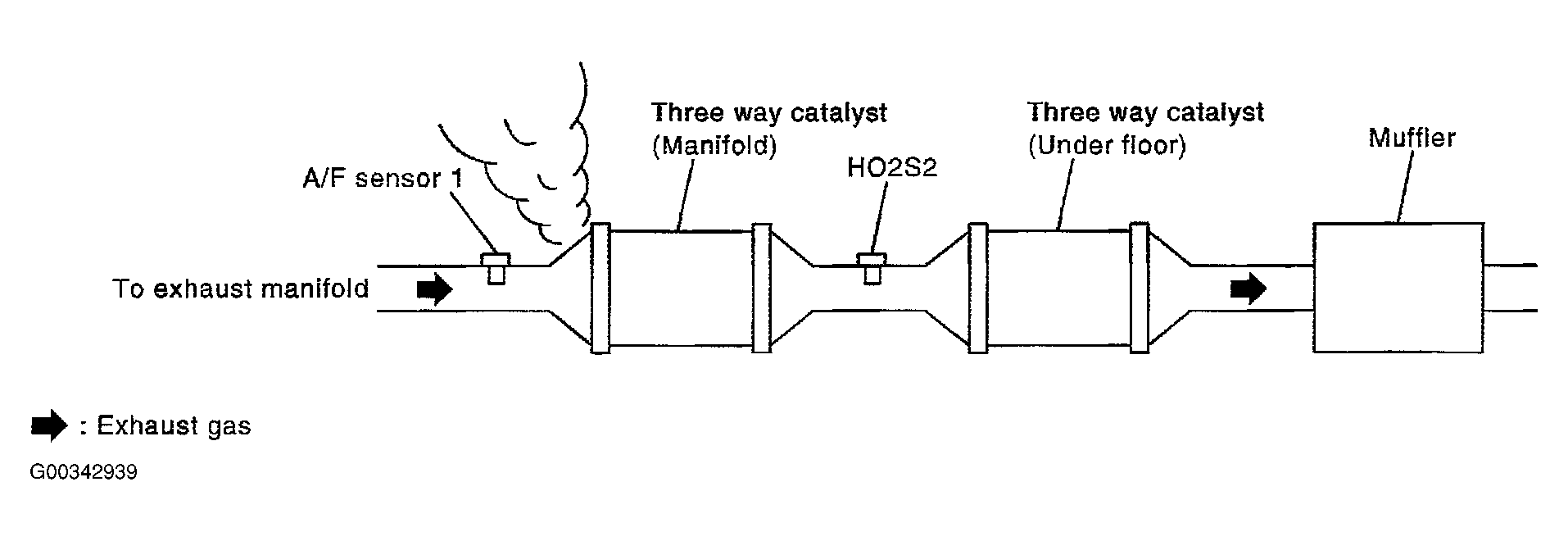

  Fig 1: Listening For An Exhaust Gas Leak
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
  1. OK: GO TO 3.
  2. NG: Repair or replace.
CHECK INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.

OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace.
CHECK IGNITION TIMING
Check the following items. Refer to BASIC INSPECTION .

Fig 2: Ignition Timing Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 5.
2. NG: Follow the BASIC INSPECTION .
CHECK INJECTORS
1. Stop engine and then turn ignition switch ON.
2. Check voltage between ECM terminals 21, 22, 23, 40, 41, 42, 44, 63 and ground with CONSULT-II or tester.
  Refer to SYSTEM WIRING DIAGRAMS - TITAN article.
  1. Battery voltage should exist.
  OK or NG
  1. OK: GO TO 6.
  2. NG: Perform INJECTOR CIRCUIT in SYSTEM & COMPONENT TESTING - TITAN article.
  Fig 3: Checking Voltage
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK IGNITION SPARK
1. Turn ignition switch OFF.
2. Disconnect ignition coil assembly from rocker cover.
3. Connect a known-good spark plug to the ignition coil assembly.
4. Disconnect all injector harness connectors.
5. Place end of spark plug against a suitable ground and crank engine.
6. Check for spark.
  OK or NG
  1. OK: GO TO 7.
  2. NG: Check ignition coil with power transistor and their circuit.
    Refer to IGNITION SIGNAL in SYSTEM & COMPONENT TESTING - TITAN article.
  Fig 4: Checking Ignition Coil
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK INJECTOR
1. Turn ignition switch OFF.
2. Remove injector assembly.
  Refer to FUEL INJECTOR AND FUEL TUBE in ENGINE MECHANICAL - TITAN - 5.6L article.

  Keep fuel hose and all injectors connected to injector gallery.
3. Disconnect all ignition coil harness connectors.
4. Reconnect injector harness connector.
5. Turn ignition switch ON.
  Make sure fuel does not drip from injector.

  OK or NG
  1. OK (Does not drip.): GO TO 8.
  2. NG (Drips.): Replace the injector(s) from which fuel is dripping.
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
1. Trouble is fixed.: INSPECTION END
2. Trouble is not fixed.: Replace three way catalyst assembly.
