Diagnostic Procedure For Ambient Sensor: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Ambient sensor circuit is open or shorted. (21 or - 21 is indicated on unified meter and A/C amp. As a result of conducting Self-diagnosis STEP-2).

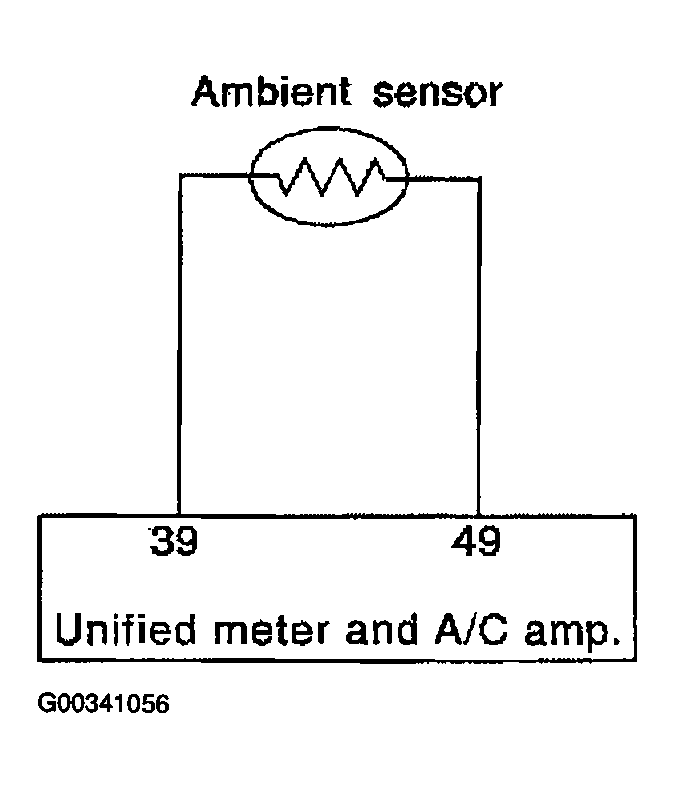

Fig 1: Ambient Sensor Circuit
G00341056Courtesy of NISSAN MOTOR CO., U.S.A.
