13. Check Malfunctioning Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following chart for malfunctioning code number. See Fig 1 and Fig 2 .

(If two or more sensors malfunction, corresponding code Nos. blink respectively twice).

^* 1: Conduct self-diagnosis STEP-2 under sunshine.

When conducting indoors, aim a light (more than 60W) at sunload sensor, otherwise Code No. 25 will indicate despite that sunload sensor is functioning properly.

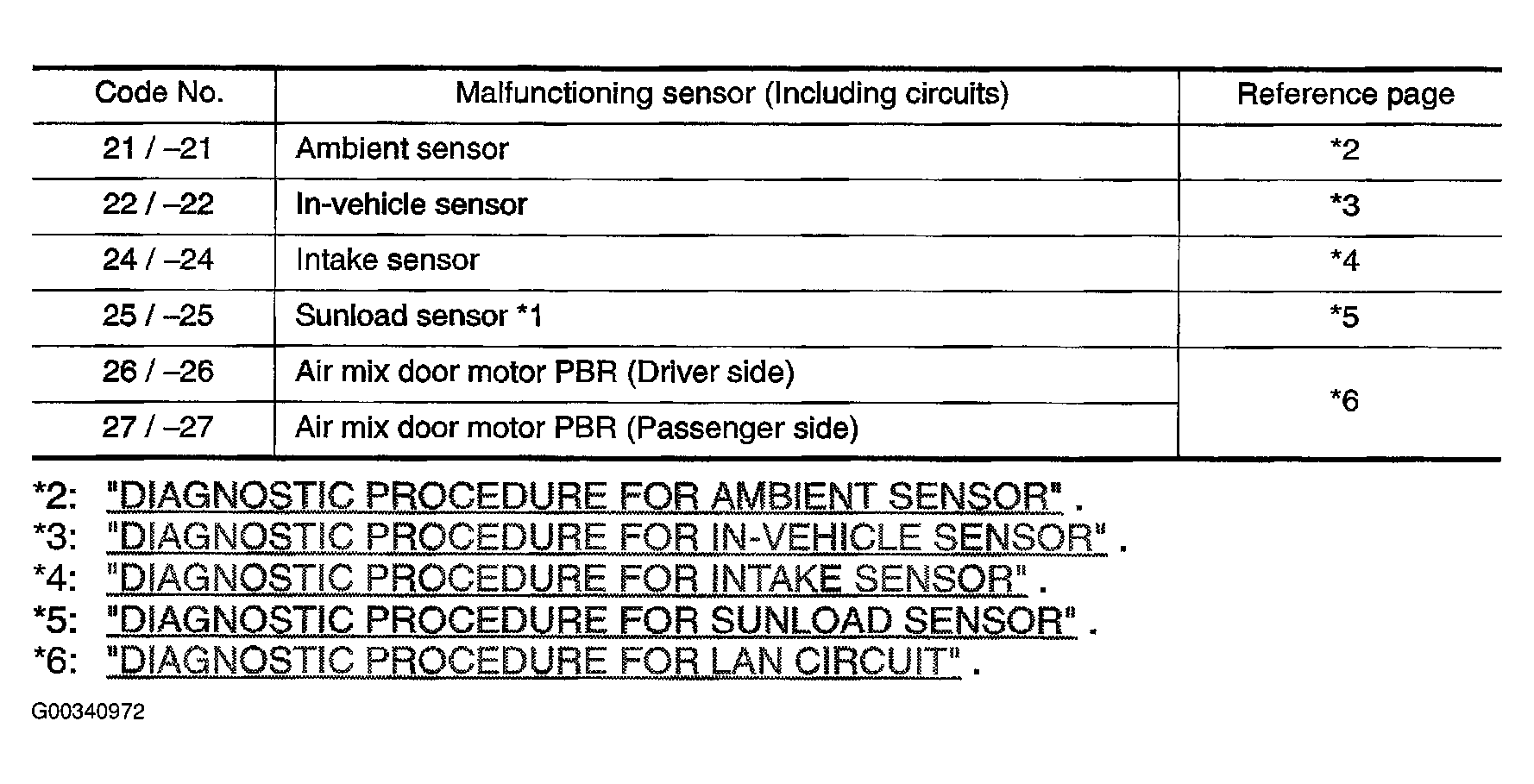

Fig 1: Malfunction Code List

Courtesy of NISSAN MOTOR CO., U.S.A.

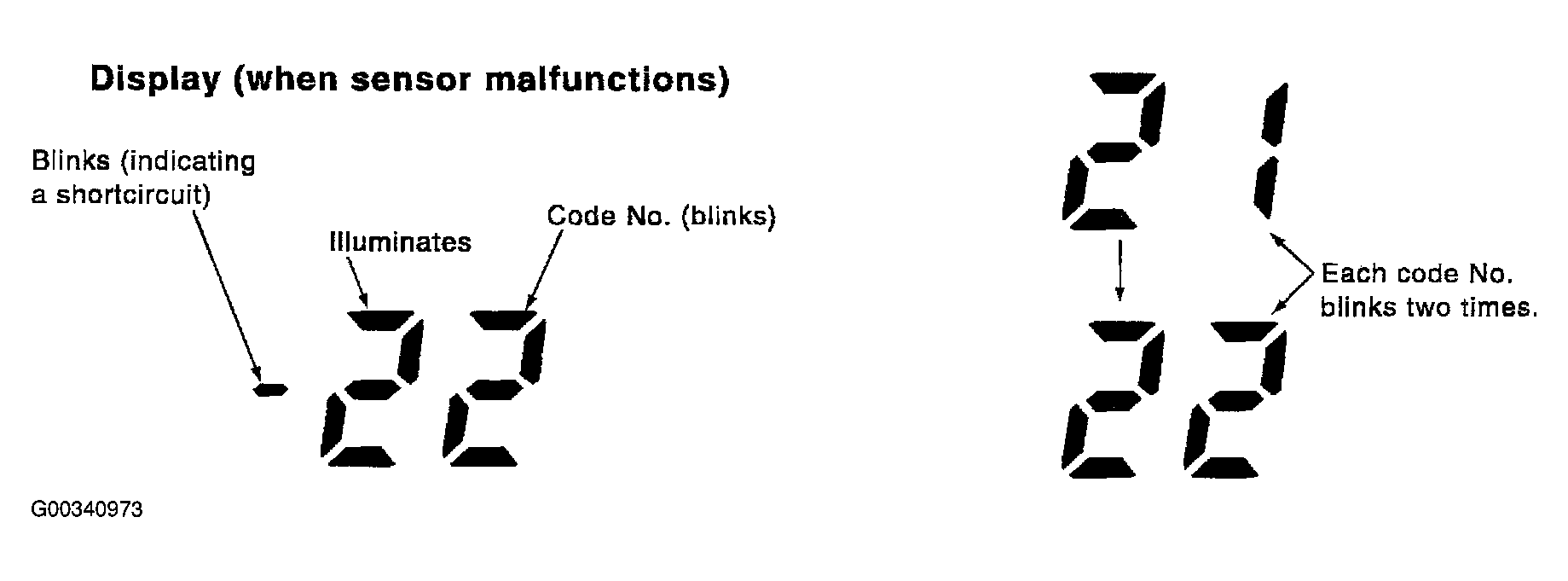

Fig 2: Malfunction Code Display

Courtesy of NISSAN MOTOR CO., U.S.A.

INSPECTION END
