Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

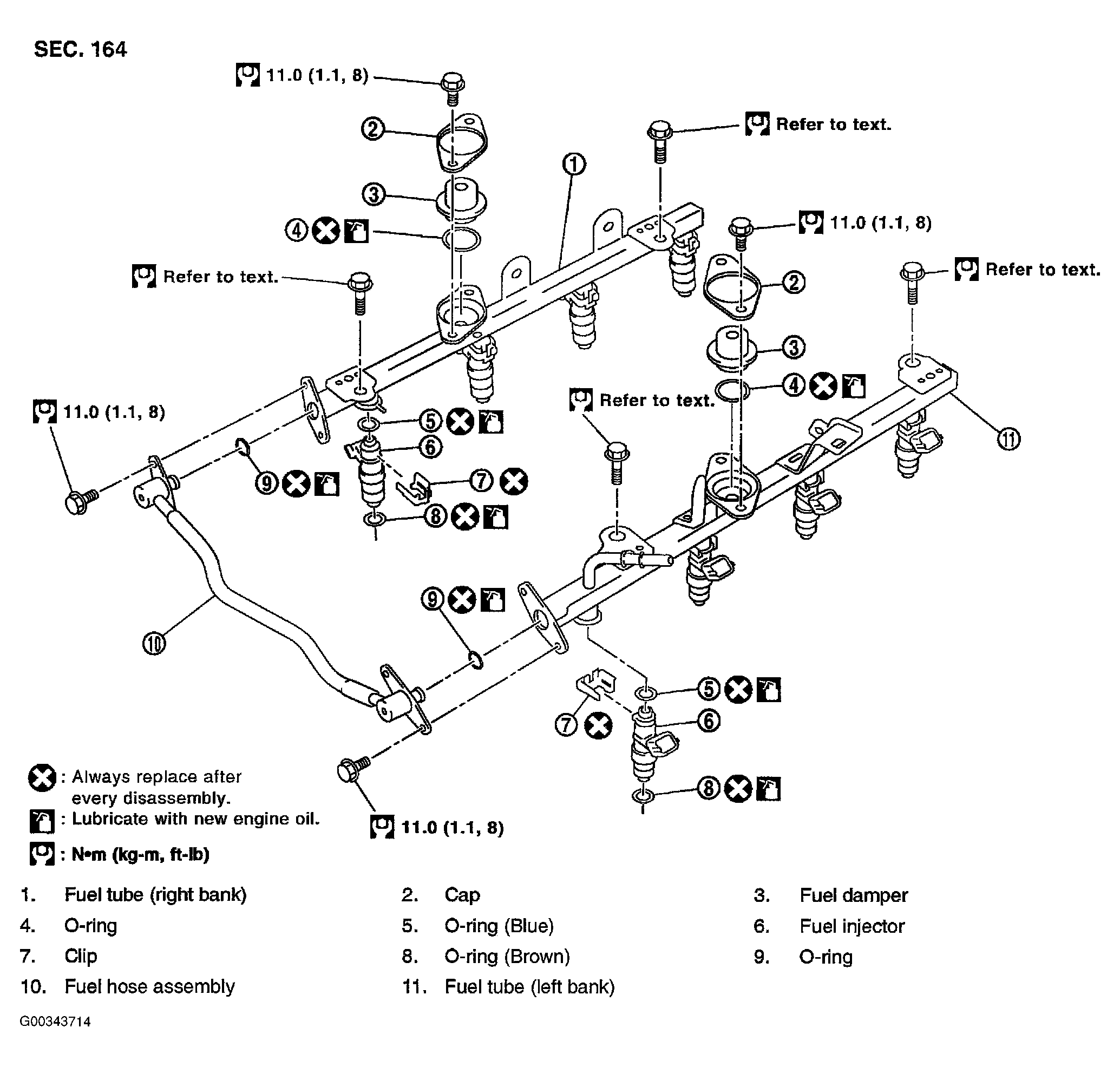

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications
G00343714Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not remove or disassemble parts unless instructed as shown in the figure.
