Band Servo Piston Assembly: Components

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

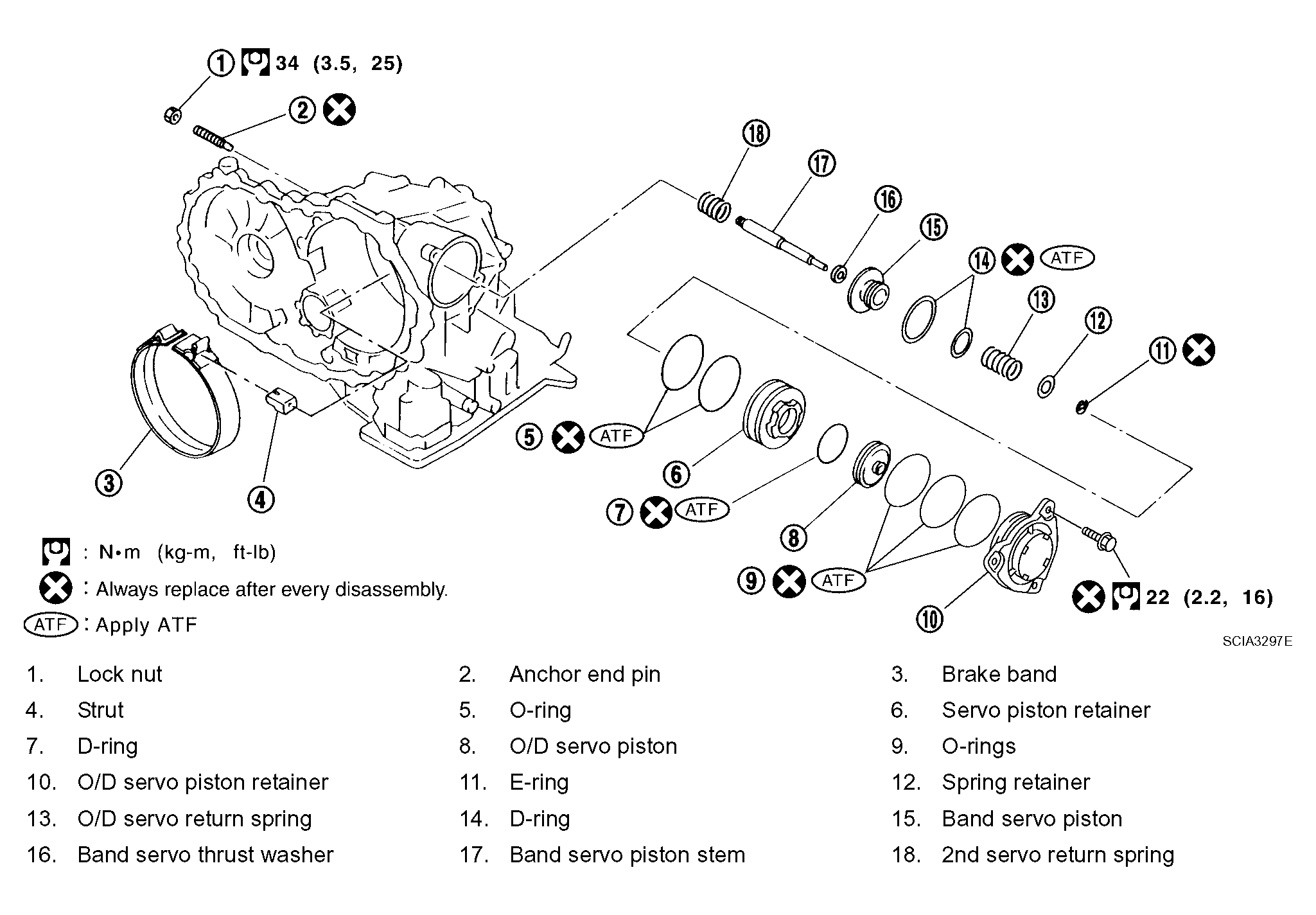

Fig 1: View Of Band Servo Piston Assembly Components With Torque Specifications
G04197918Courtesy of NISSAN MOTOR CO., U.S.A.
