Control Valve Assembly and Accumulators: Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

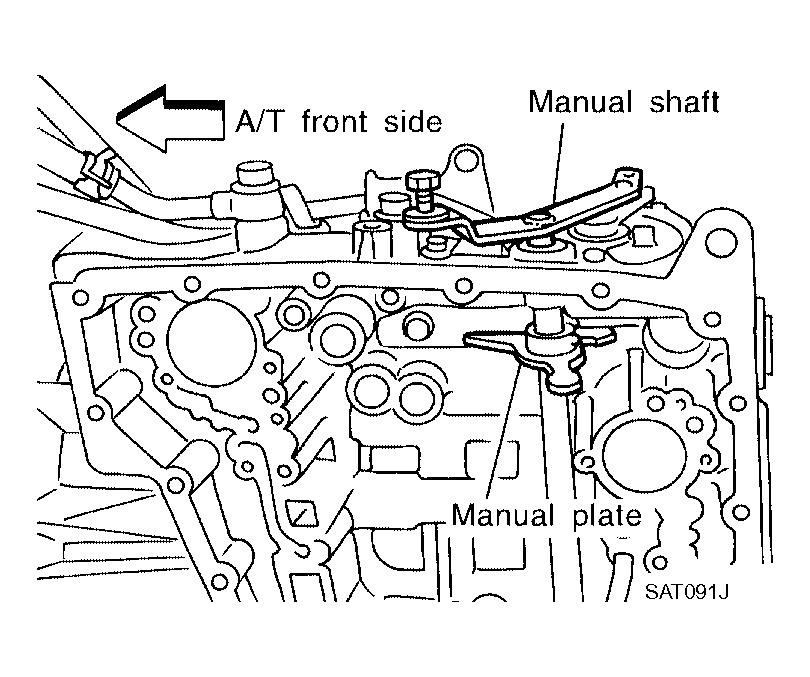

Set manual shaft in Neutral, then align manual plate with groove in manual valve.
After installing control valve assembly, make sure that selector lever can be moved to all positions.

Fig 1: Identifying Servo Release And N-D Accumulators
Courtesy of NISSAN MOTOR CO., U.S.A.
