Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

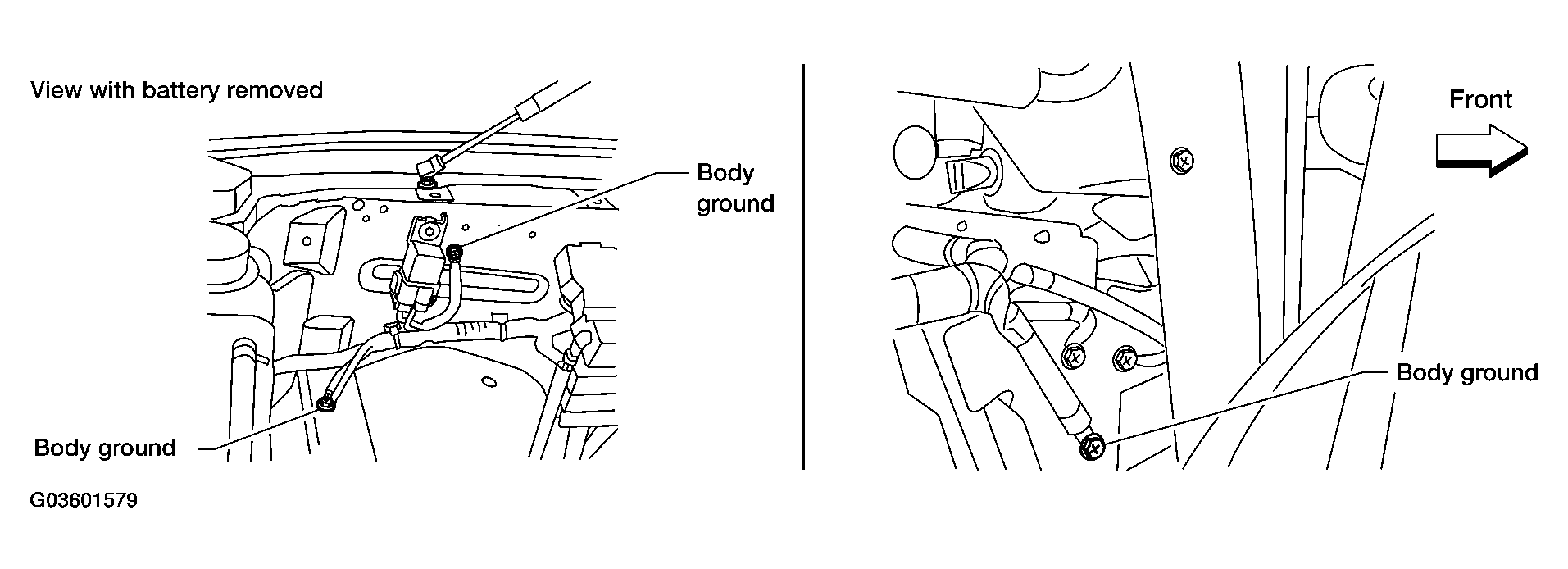

      Fig 1: Checking Ground Connections
      G03601579Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
    2. Turn ignition switch ON.
      Fig 2: Disconnecting "Fuel Level Sensor Unit And Fuel Pump" Harness Connector
      G03601580Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between "fuel level sensor unit and fuel pump" terminal 4 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO 3.
      Fig 3: Checking Voltage Between "Fuel Level Sensor Unit And Fuel Pump" Terminal 4 And Ground
      G03601581Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors C1, E41
    • Harness for open or short between ECM and "fuel level sensor unit and fuel pump"
    1. >> Repair harness or connector.
  4. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between "fuel level sensor unit and fuel pump" terminal 3 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to power.

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors C1, E41
    • Harness for open or short between "fuel level sensor unit and fuel pump" and ground
    1. >> Repair open circuit or short to power in harness or connector.
  6. CHECK FUEL TANK TEMPERATURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 7.
    2. NG: Replace "fuel level sensor unit fuel pump".
  7. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. >> INSPECTION END
