Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
  Refer to "GROUND INSPECTION ".

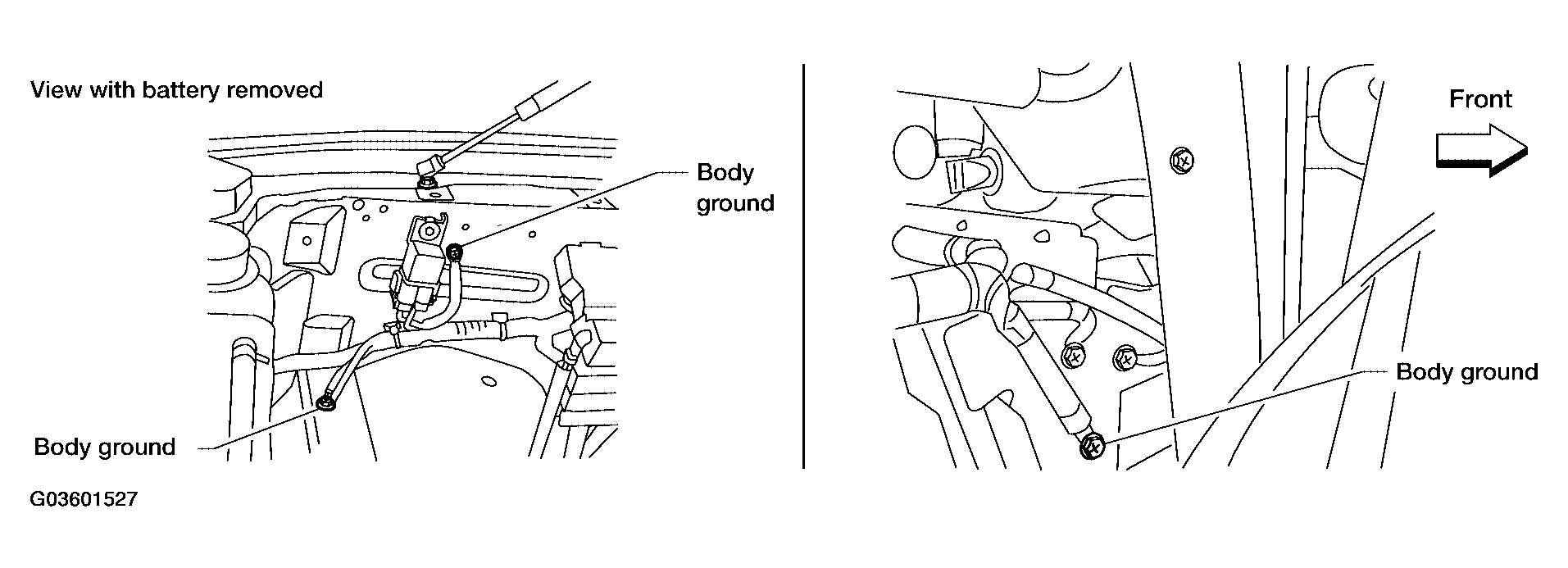

  Fig 1: Checking Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace ground connections.
CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 3.
2. NG: Replace mass air flow sensor (with intake air temperature sensor).
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

For wiring diagram, refer to "WIRING DIAGRAM ".
1. >> INSPECTION END
