Wiring Diagram - ASCIND

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

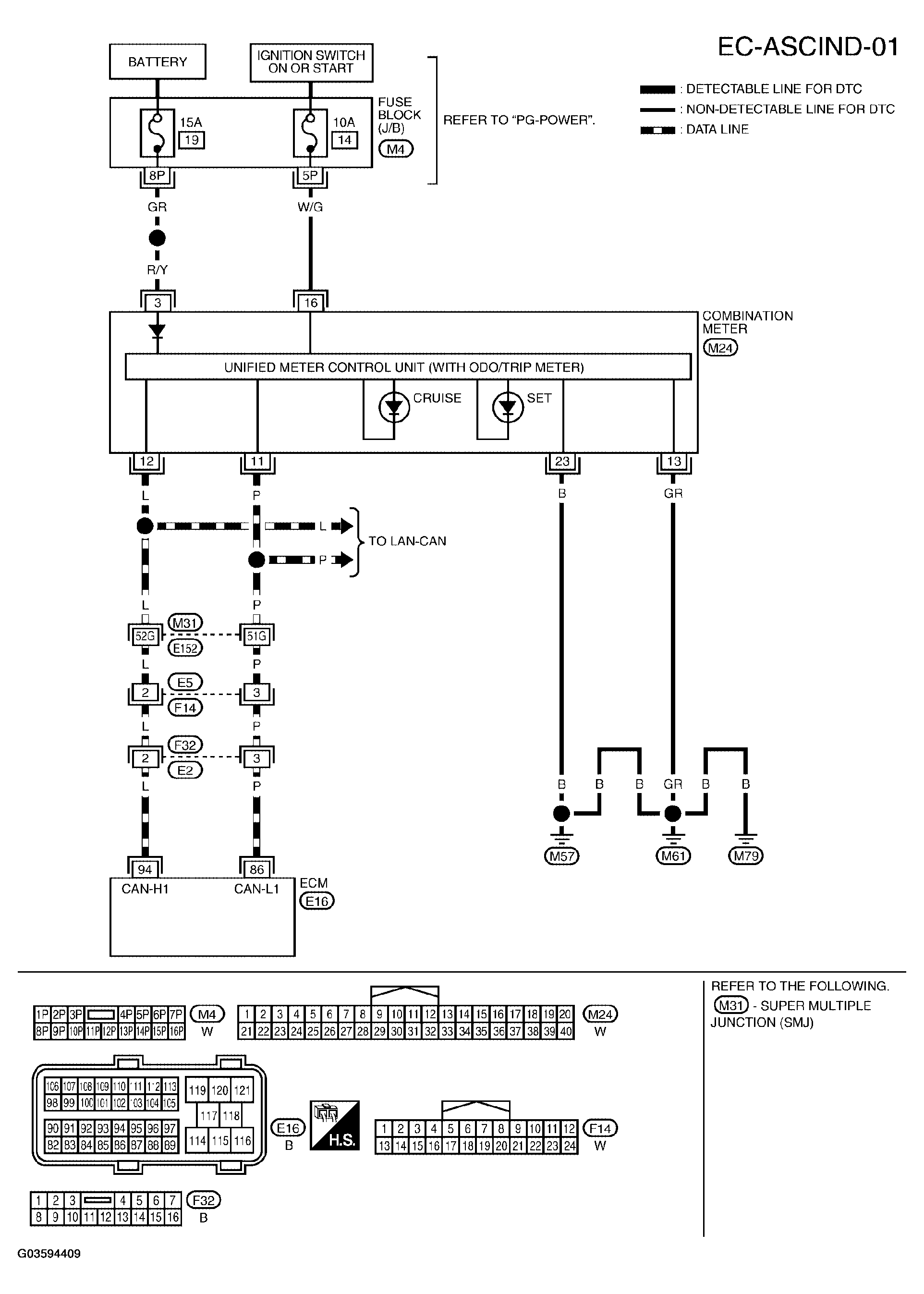

Fig 1: Wiring Diagram (EC-ASCIND-01)
G03594409Courtesy of NISSAN MOTOR CO., U.S.A.
