ASCD Steering Switch

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 17 and 18 with pushing each switch.
    ON BOARD DIAGNOSTIC LOGIC

    Switch Condition Resistance [Ω]
    MAIN switch
    CANCEL switch    		 Pressed Approx. 0
    Released
    Pressed    		 Approx. 4, 000
    Approx. 250
    Released Approx. 4, 000
    RESUME/ACCELERATE switch Pressed Approx. 1, 480
    Released Approx. 4, 000
    SET/COAST switch Pressed Approx. 660
    Released Approx. 4, 000

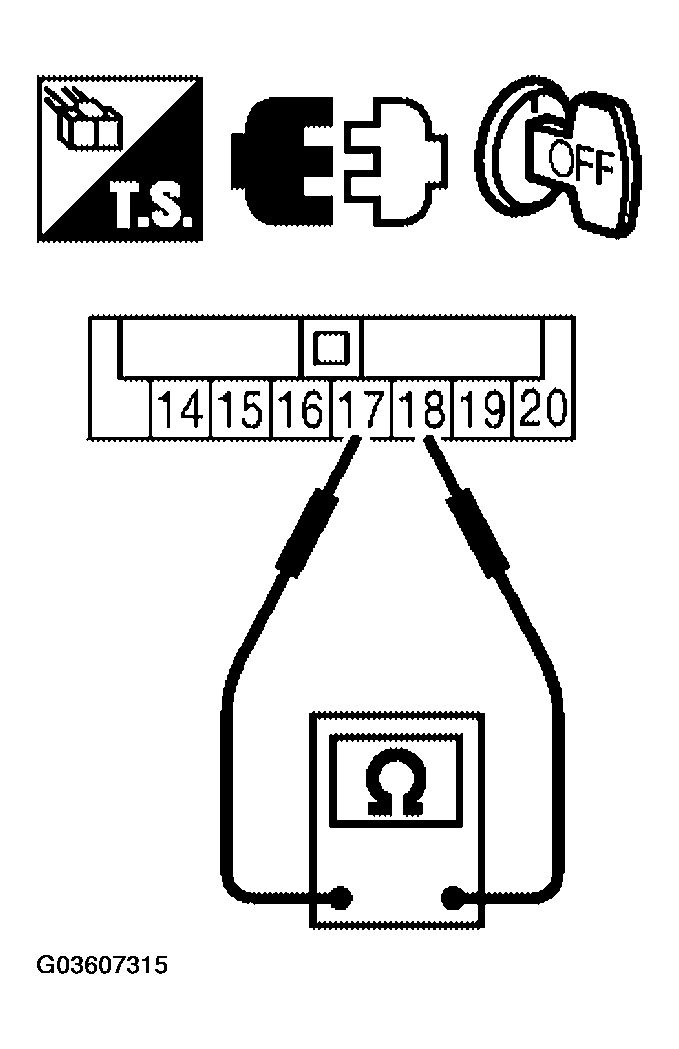

    Fig 1: Checking Continuity Between Combination Switch Terminals 17 And 18
    G03607315Courtesy of NISSAN MOTOR CO., U.S.A.
