Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.
  1. Remove the front tweeter grille.
  2. Remove the front tweeter screws (A).
  3. Pull out the front tweeter speaker (1) and disconnect front tweeter connector, then remove the front tweeter speaker (1).

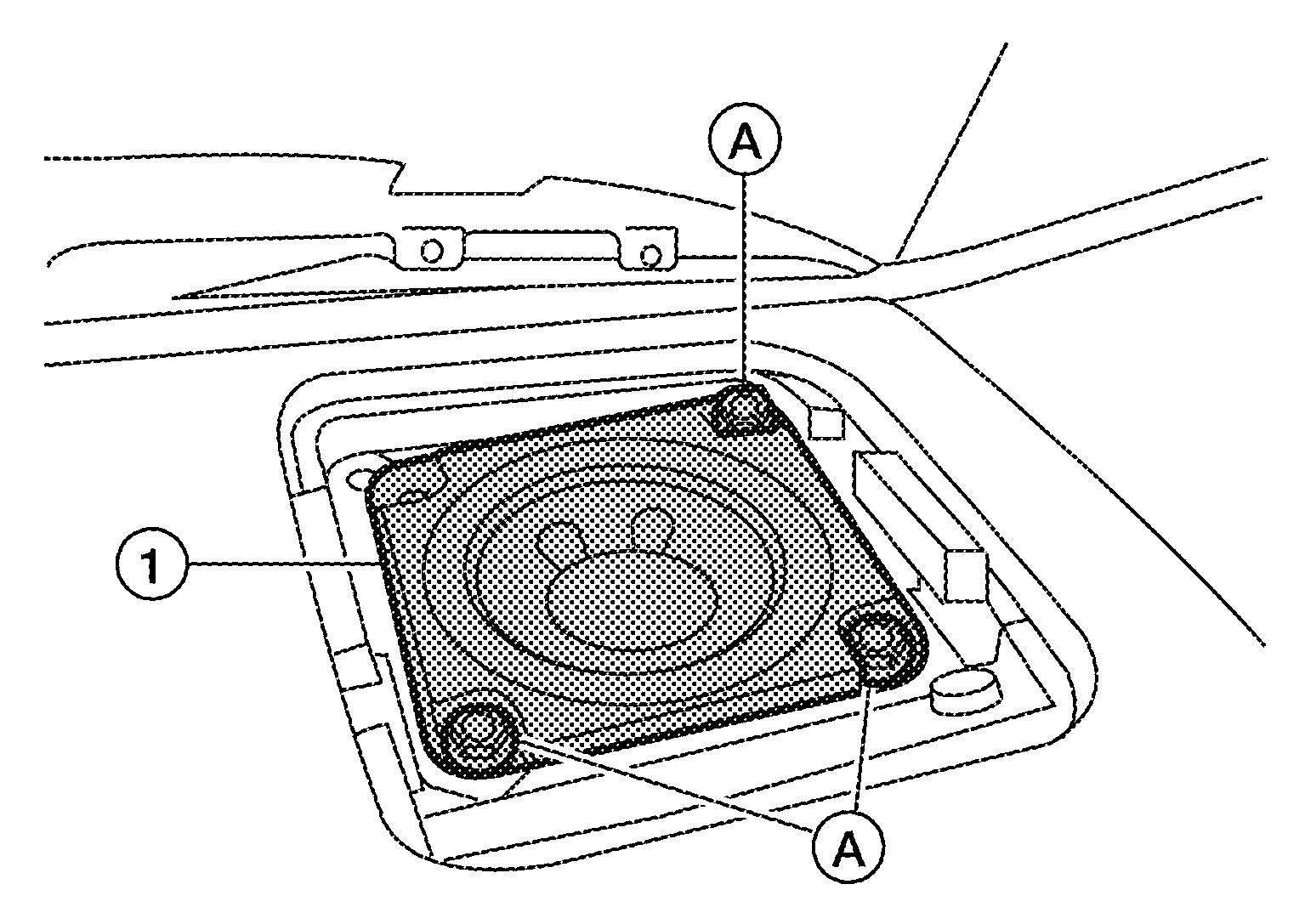

Fig 1: Identifying Front Tweeter Speaker And Screws
G05714468Courtesy of NISSAN NORTH AMERICA, INC.
