Wiring Diagram - AUTO LIGHT SYSTEM

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-Power, see .

Fig 1: Auto Light System Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

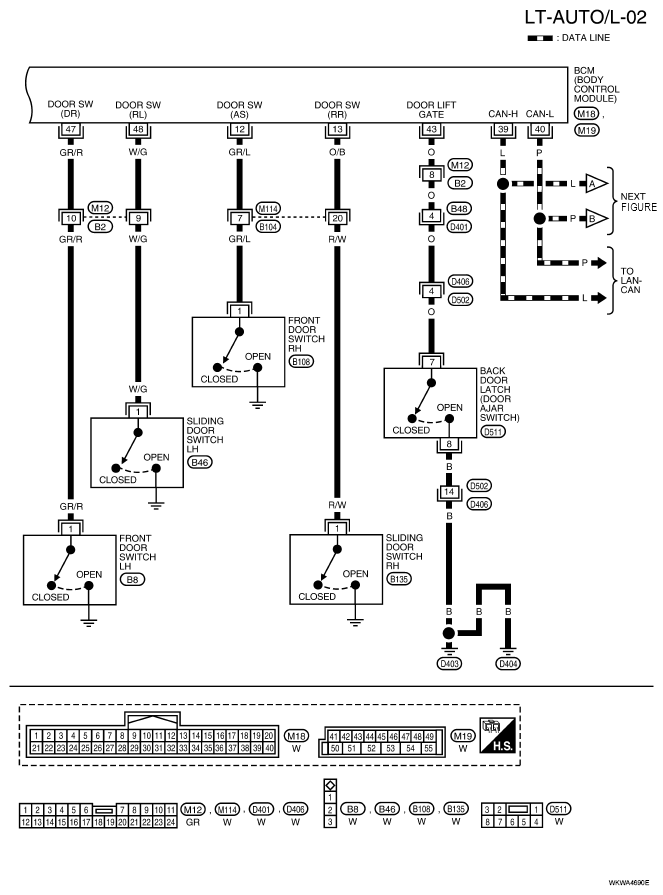

Fig 2: Auto Light System Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Auto Light System Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
