Wiring Diagram - INF/D -: Notes

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

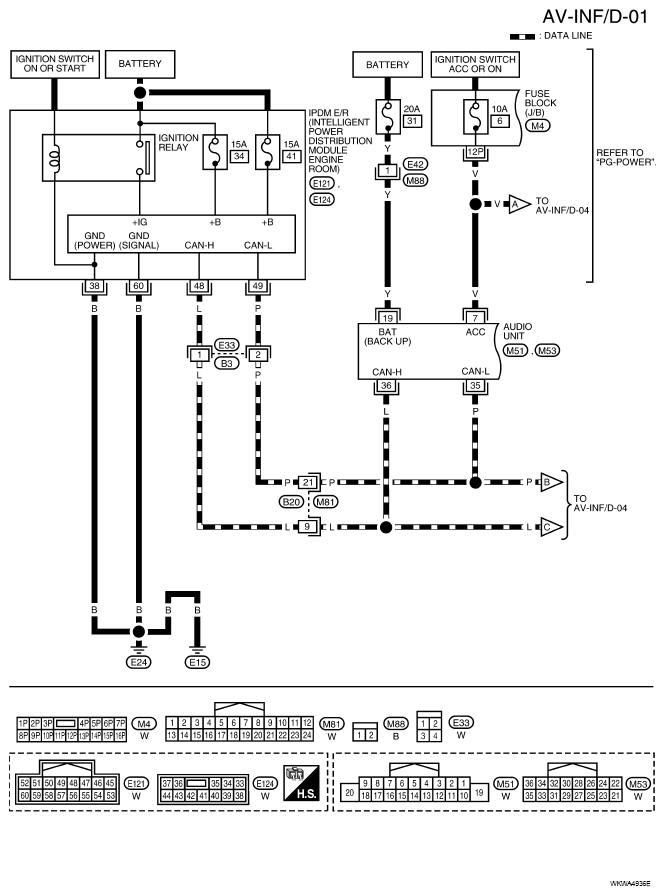

Fig 1: Wiring Diagram - AV-INF/D-01
G04918406Courtesy of NISSAN MOTOR CO., U.S.A.
