Shift Lock System Electrical Parts Location

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

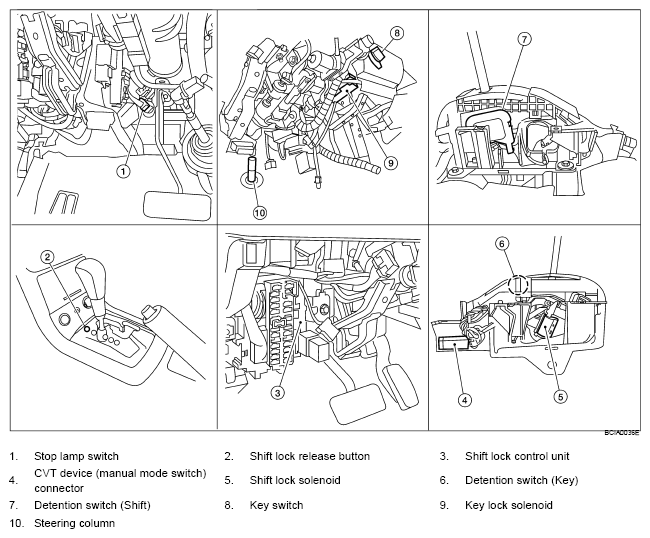

Fig 1: Identifying Shift Lock System Electrical Parts Location
G04916223Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: This emergency lever can be used when battery is off ignition key cannot be removed. In the situation like this, by operating this lever, ignition key can be removed.
