O-Ring And Refrigerant Connection: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

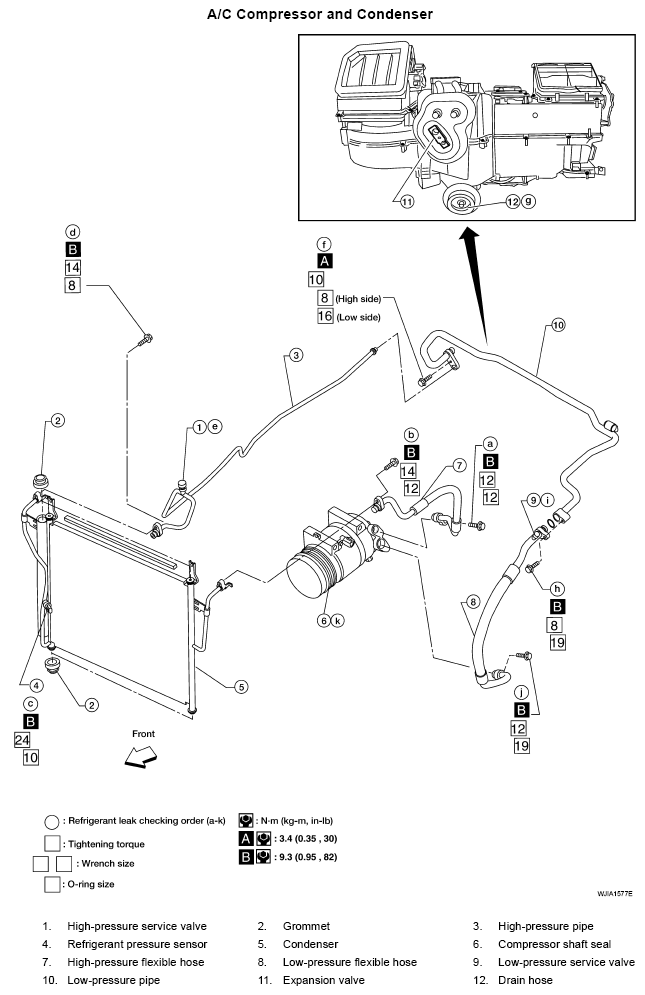

Fig 1: A/C Compressor, Condenser O-Ring & Refrigerant Connection With Torque Specifications
G04756241
CAUTION: The new and former refrigerant connections use different O-ring configurations. Do not confuse O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or around the connection.
