Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

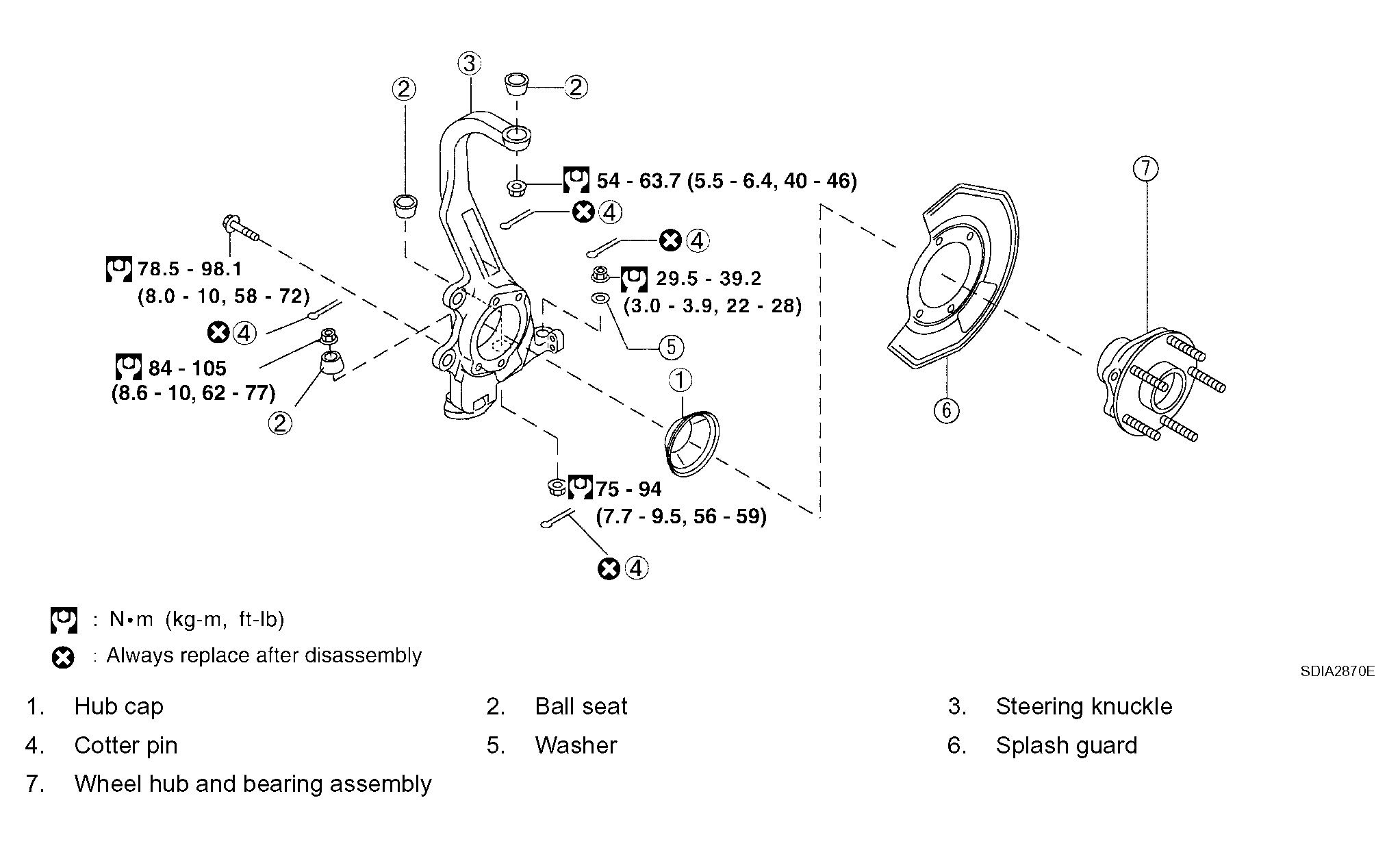

Fig 1: Removing/Installing Front Wheel Hub & Knuckle With Torque Specifications
G04214533Courtesy of NISSAN MOTOR CO., U.S.A.

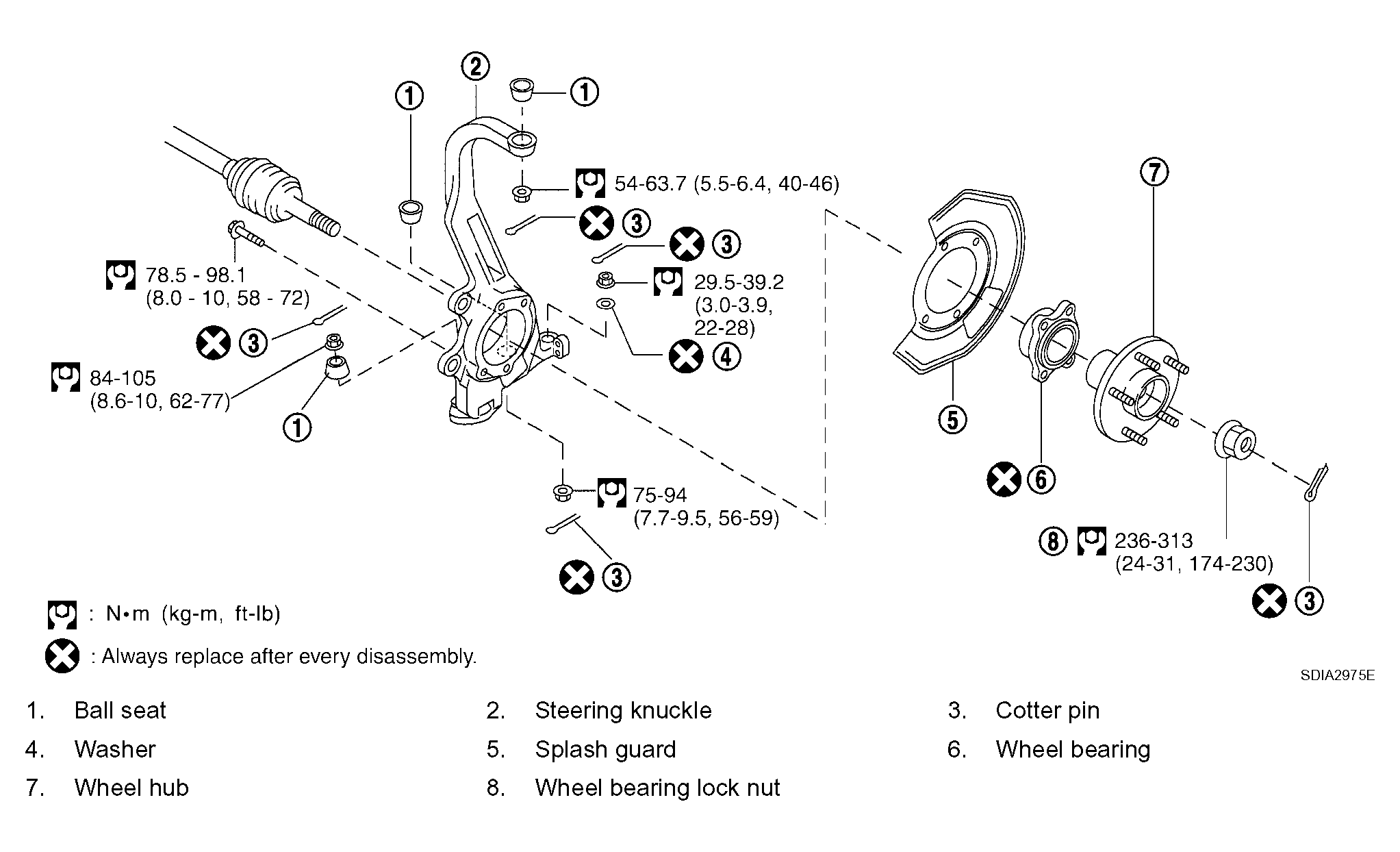

Fig 1: Removing/Installing Wheel Bearing With Torque Specifications
G04214548Courtesy of NISSAN MOTOR CO., U.S.A.
