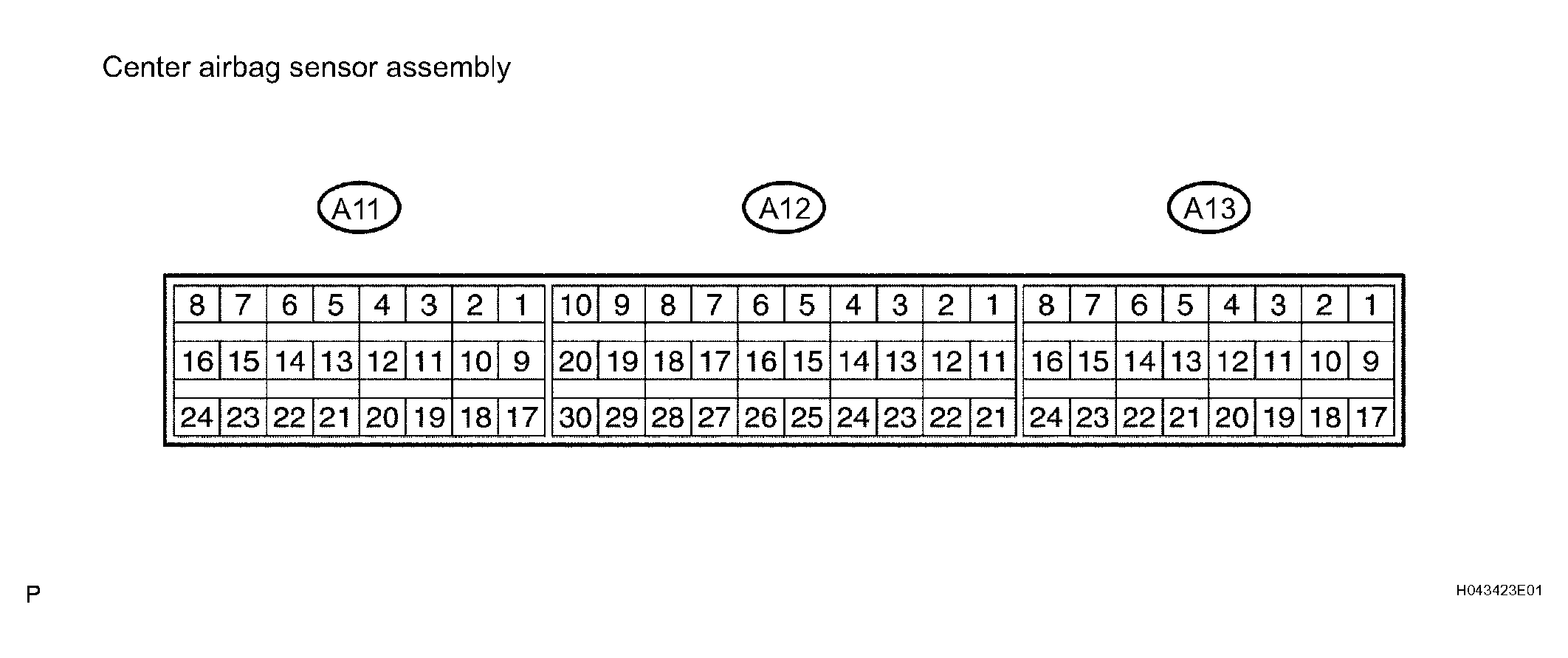

CONNECTOR TERMINAL REFERENCE
| Terminal No. | Terminal Symbol | Terminal Name | ||
|---|---|---|---|---|
| A11-1(1) | SFD+ | Side airbag assembly LH (Side squib LH) | ||
| A11-2(1) | SFD- | Side airbag assembly LH (Side squib LH) | ||
| A11-3(1) | ICD- | Curtain shield airbag assembly LH (Curtain shield squib LH) | ||
| A11-4(1) | ICD+ | Curtain shield airbag assembly LH (Curtain shield squib LH) | ||
| A11-5 | PD+ | Front seat outer belt assembly LH (Pretensioner squib LH) | ||
| A11-6 | PD- | Front seat outer belt assembly LH (Pretensioner squib LH) | ||
| A11-9 | DSP+ | Seat position airbag sensor | ||
| A11-10 | DBE+ | Front seat inner belt assembly LH | ||
| A11-17 | DSP- | Seat position airbag sensor | ||
| A11-18 | DBE- | Front seat inner belt assembly LH | ||
| A11-19(1) | VUPD | Side airbag sensor assembly | ||
| A11-20(1) | VUCD | Rear airbag sensor LH | ||
| A11-21(1) | ESD | Side airbag sensor assembly | ||
| A11-22(1) | ESCD | Rear airbag sensor LH | ||
| A12-1 | P2+ | Front passenger airbag assembly (Passenger squib, Dual stage - 2nd step) | ||
| A12-2 | P2- | Front passenger airbag assembly (Passenger squib, Dual stage - 2nd step) | ||
| A12-3 | P- | Front passenger airbag assembly (Passenger squib) | ||
| A12-4 | P+ | Front passenger airbag assembly (Passenger squib) | ||
| A12-5 | D+ | Horn button assembly (Driver squib) | ||
| A12-6 | D- | Horn button assembly (Driver squib) | ||
| A12-7 | D2- | Horn button assembly (Driver squib, Dual stage - 2nd step) | ||
| A12-8 | D2+ | Horn button assembly (Driver squib, Dual stage - 2nd step) | ||
| A12-9 | DK+ | No. 1 instrument panel airbag assembly lower (Knee airbag squib) | ||
| A12-10 | DK- | No. 1 instrument panel airbag assembly lower (Knee airbag squib) | ||
| A12-14 | LA | Combination meter assembly (SRS warning light) | ||
| A12-15 | TC | DLC3 | ||
| A12-16 | SIL | DLC3 | ||
| A12-21 | IG2 | IG2 fuse (Power source) | ||
| A12-22 | GSW2 | ECM | ||
| A12-25 | E1 | Ground | ||
| A12-26 | E2 | Ground | ||
| A12-27 | -SR | Front airbag sensor RH | ||
| A12-28 | -SL | Front airbag sensor LH | ||
| A12-29 | +SR | Front airbag sensor RH | ||
| A12-30 | +SL | Front airbag sensor LH | ||
| A13-3 | PP- | Front seat outer belt assembly RH (Pretensioner squib RH) | ||
| A13-4 | PP+ | Front seat outer belt assembly RH (Pretensioner squib RH) | ||
| A13-5(1) | ICP+ | Curtain shield airbag assembly RH (Curtain shield squib RH) | ||
| A13-6(1) | ICP- | Curtain shield airbag assembly RH (Curtain shield squib RH) | ||
| A13-7(1) | SFP- | Front seat airbag assembly RH (Side squib RH) | ||
| A13-8(1) | SFP+ | Front seat airbag assembly RH (Side squib RH) | ||
| A13-5 | PBE+ | Front seat inner belt assembly RH | ||
| A13-19(1) | ESCP | Rear airbag sensor RH | ||
| A13-20(1) | ESP | Side airbag sensor assembly RH | ||
| A13-21(1) | VUCP | Rear airbag sensor RH | ||
| A13-22(1) | VUPP | Side airbag sensor assembly RH | ||
|
||||
