Steering Gear Outer and Inner Socket
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
STEERING GEAR OUTER AND INNER SOCKET SPECIFICATION
| Steering gear type | PR26AM | |
| Outer socket | Swinging Torque | 0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3-25 in-lb) |

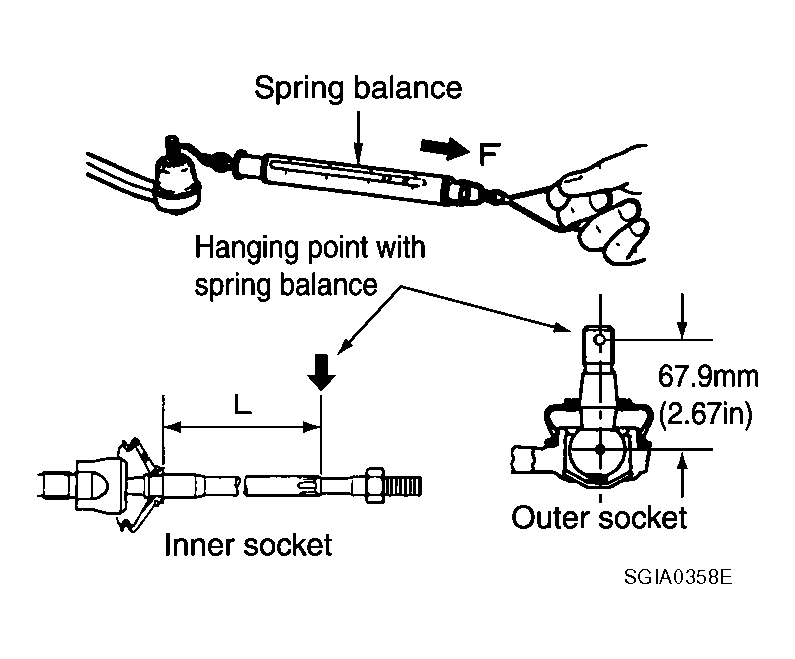

Measurement on spring balance
|
4.84 - 46.7 N (0.50 - 4.7 kg-f, 4-34 lb-f) | |
| Rotating torque | 0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3-25 in-lb) | |
| Axial end play | 0.5 mm (0.020 in) or less | |
| Inner socket | Swinging torque | 1.0 - 7.8 N.m (0.11 - 0.79 kg-m, 9 - 69 in-lb) |
Measurement on spring balance
L=83.2 mm (3.276 in). |
12.1 - 93.7 N (1.3 - 9.5 kg-f, 9-69 lb-f) | |
| Axial end play | 0.2 mm (0.08 in) or less | |
