Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to , "CLUSTER LID C ".
  2. Remove instrument lower panel LH. Refer to , "REMOVAL ".
  3. Remove storage tray. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  4. Remove glove box. Refer to , "GLOVE BOX ".
  5. Remove center console. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  6. Disconnect electrical connectors.
  7. Remove combination meter. Refer to , "COMBINATION METER ".
  8. Remove GPS screws.

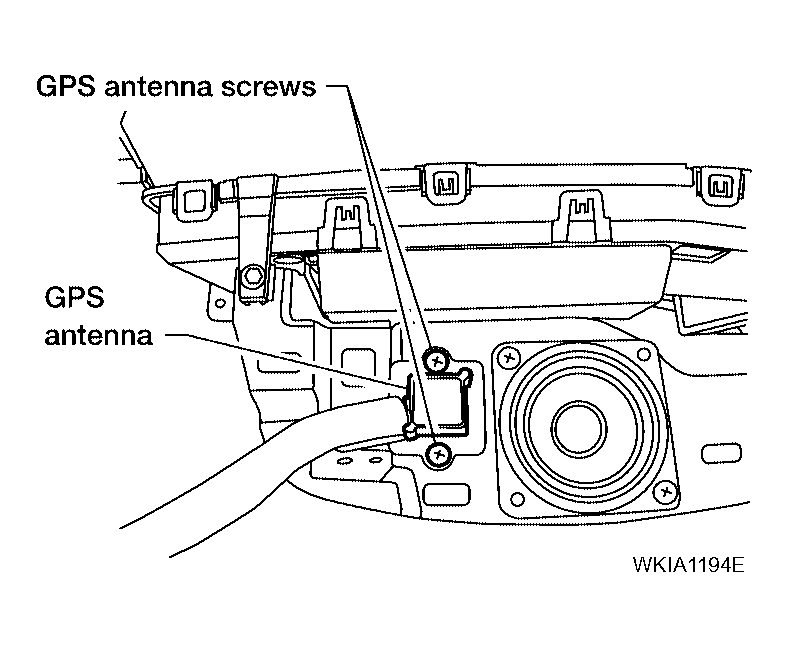

    Fig 1: Identifying GPS Antenna Screws
    G04201851Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect GPS antenna connector and remove GPS antenna and feeder assembly out the top.

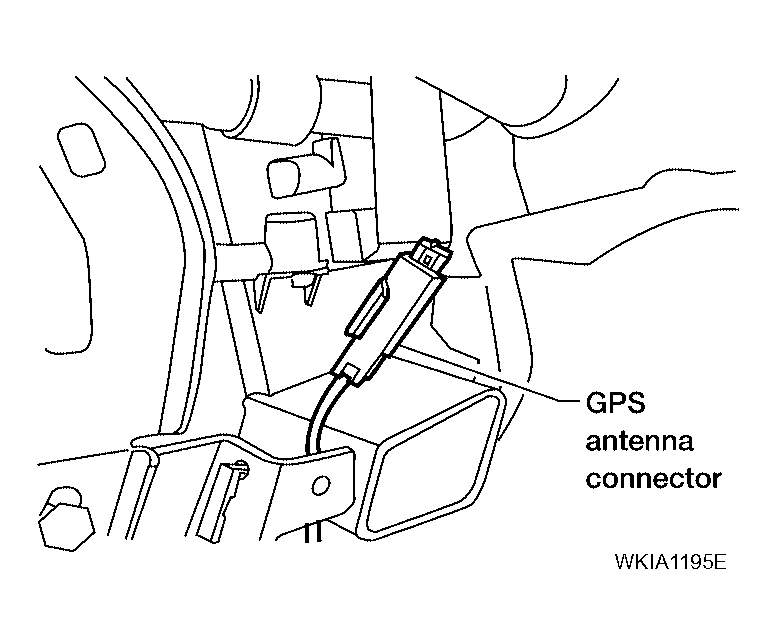

    Fig 2: Identifying GPS Antenna Connector
    G04201852Courtesy of NISSAN MOTOR CO., U.S.A.
