Rear Sonar System Off Switch
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

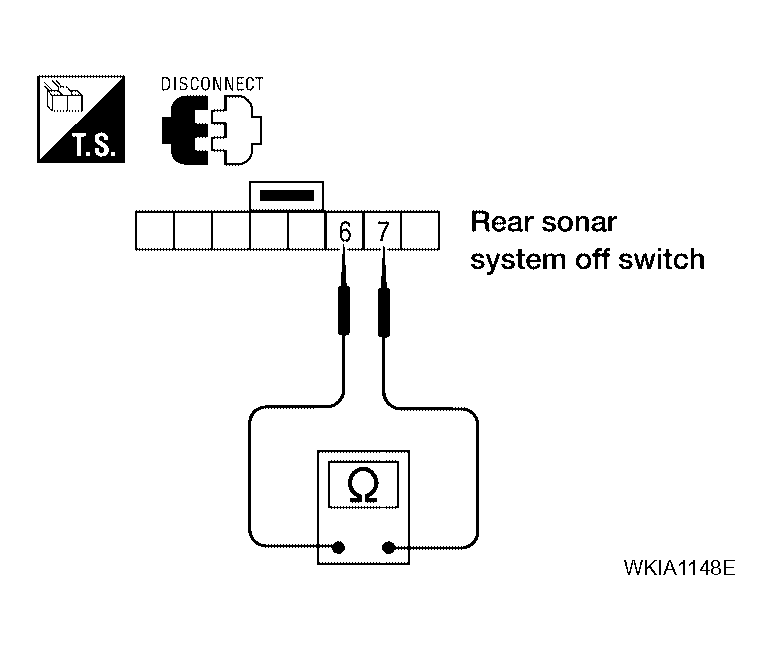

Disconnect the rear sonar system OFF switch connector M116. Check continuity between the following terminals.
REAR SONAR SYSTEM OFF SWITCH - CONTINUITY TABLE
| Rear sonar system OFF switch |
Terminal to be inspected |
Continuity |
| ON |
6 - 7 |
Yes |
| OFF |
No |
