With Right And Left Hand Slide Door Auto Closure System
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

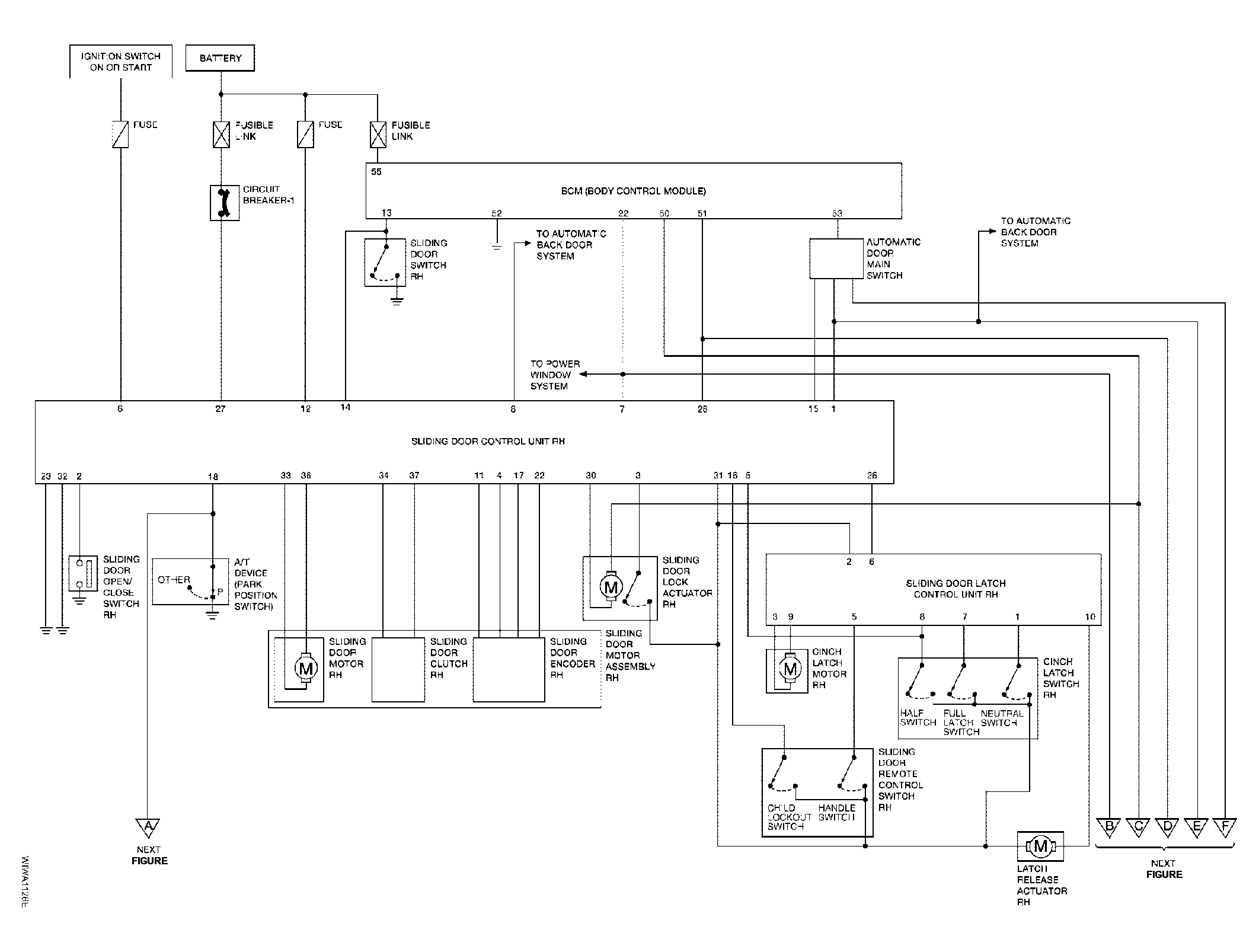

Fig 1: Automatic Sliding Door System - Schematic Diagram (With Right And Left Hand Slide Door Auto Closure System) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

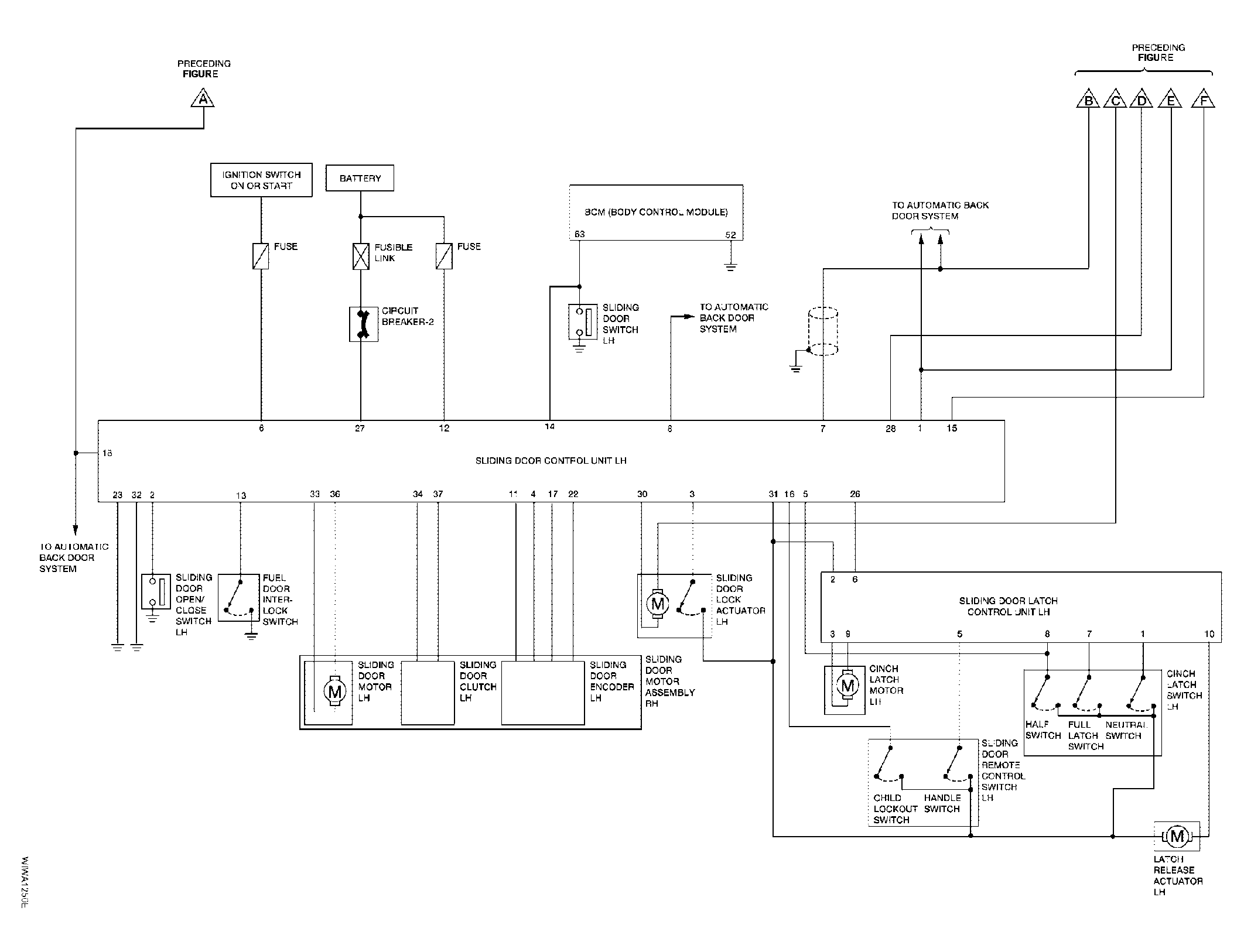

Fig 2: Automatic Sliding Door System - Schematic Diagram (With Right And Left Hand Slide Door Auto Closure System) (2 Of 2)
