Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

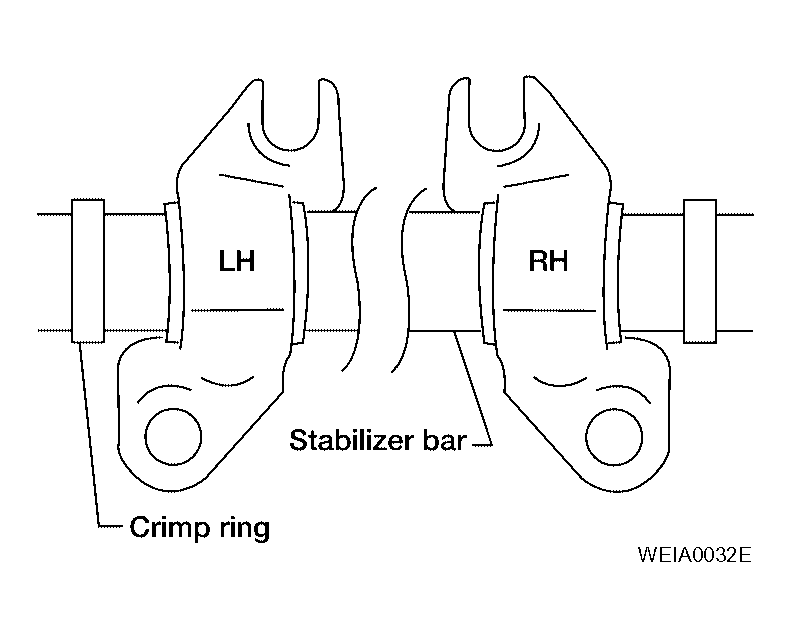

When installing stabilizer bar, make sure that the stabilizer clamps are facing in the correct direction as shown.

Fig 1: Installing Stabilizer Bar
Courtesy of NISSAN MOTOR CO., U.S.A.

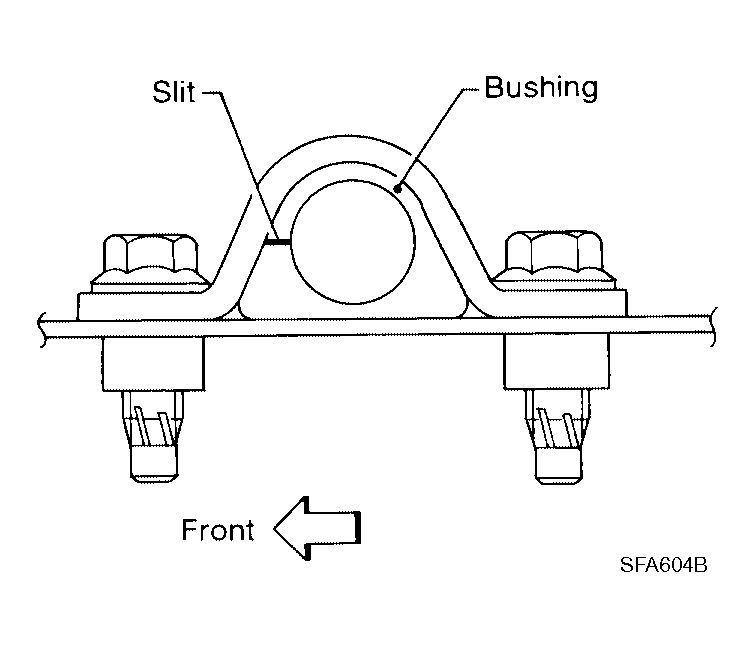

Make sure that slit in stabilizer bushing is in the position as shown.
Lubricate the inner and outer surfaces of the stabilizer bushing using a silicone lubricant.

Fig 2: Inspecting Stabilizer Bushing Position
Courtesy of NISSAN MOTOR CO., U.S.A.
