Cylinder Block
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER BLOCK SPECIFICATIONS
| Unit: mm (in) | ||||
| Surface distortion | Limit | 0.10 (0.0039) | ||
| Cylinder bore | Inner diameter | Standard | Grade No. 1 | 95.500 - 95.510 (3.7598 - 3.7602) |
| Grade No. 2 | 95.510 - 95.520 (3.7602 - 3.7606) | |||
| Grade No. 3 | 95.520 - 95.530 (3.7606 - 3.7610) | |||
| Wear limit | 0.20 (0.0079) | |||

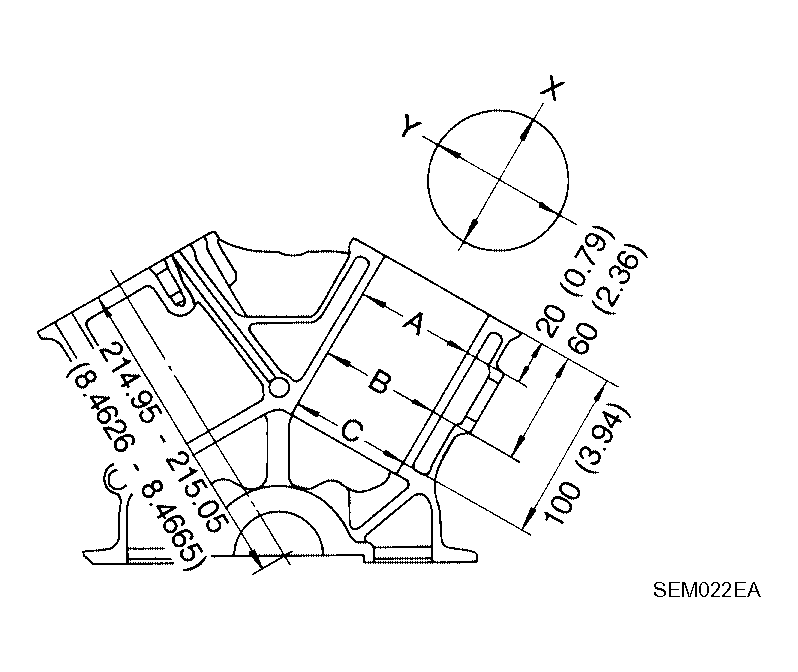

| Out-of-round (Difference between X - Y) | Less than 0.015 (0.0006) | |||
| Taper (Difference between C - A) | Less than 0.015 (0.0006) | |||
| Main journal inner diameter grade (Without bearing) | Grade No. A Grade No. B Grade No. C Grade No. D Grade No. E Grade No. F Grade No. G Grade No. H Grade No. J Grade No. K Grade No. L Grade No. M Grade No. N Grade No. P Grade No. R Grade No. S Grade No. T Grade No. U Grade No. V Grade No. W Grade No. X Grade No. Y Grade No. 4 Grade No. 7 |
63.993 - 63.994 (2.5194 - 2.5194) 63.994 - 63.995 (2.5194 - 2.5195) 63.995 - 63.996 (2.5195 - 2.5195) 63.996 - 63.997 (2.5195 - 2.5196) 63.997 - 63.998 (2.5196 - 2.5196) 63.998 - 63.999 (2.5196 - 2.5196) 63.999 - 64.000 (2.5196 - 2.5197) 64.000 - 64.001 (2.5197 - 2.5197) 64.001 - 64.002 (2.5197 - 2.5198) 64.002 - 64.003 (2.5198 - 2.5198) 64.003 - 64.004 (2.5198 - 2.5198) 64.004 - 64.005 (2.5198 - 2.5199) 64.005 - 64.006 (2.5199 - 2.5199) 64.006 - 64.007 (2.5199 - 2.5200) 64.007 - 64.008 (2.5200 - 2.5200) 64.008 - 64.009 (2.5200 - 2.5200) 64.009 - 64.010 (2.5200 - 2.5201) 64.010 - 64.011 (2.5201 - 2.5201) 64.011 - 64.012 (2.5201 - 2.5202) 64.012 - 64.013 (2.5202 - 2.5202) 64.013 - 64.014 (2.5202 - 2.5202) 64.014 - 64.015 (2.5202 - 2.5203) 64.015 - 64.016 (2.5203 - 2.5203) 64.016 - 64.017 (2.5203 - 2.5203) |
||
