Wheel Bearing
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
WHEEL BEARING SERVICE DATA
| Axial end play |
0.05 mm (0.002 in) or less |
| Rotating torque |
At a load of 49,033 N (5,000 kg, 11,000 lb) Less than 1.88 N.m (0.19 kg-m, 17 in-lb) |

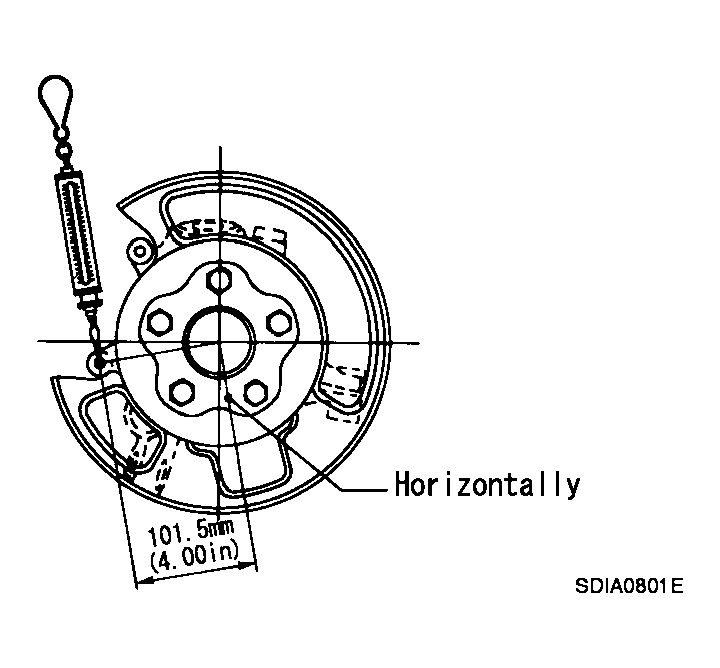

| Measurement of spring scale |
Less than 18.5 N (1.89 kg, 4.16 lb) |
| Measuring point (Brake caliper installation points) |
|
