Check Seat Memory and Set Switch Circuit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

With "SET SW,MEMORY SW1, MEMORY SW2" on the DATA MONITOR, operate the switch to check ON/ OFF operation.

MONITOR ITEM

Monitor item [OPERATION or UNIT]		Contents
MEMORY SW1	"ON/OFF"	ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2	"ON/OFF"	ON/OFF status judged from the seat memory switch 2 signal is displayed.
SET SW	"ON/OFF"	ON/OFF status judged from the setting switch signal is displayed.

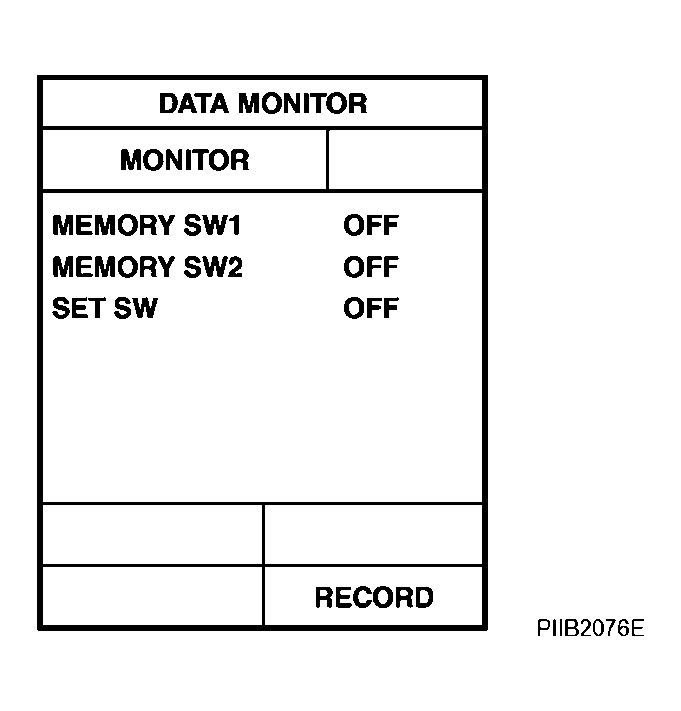

Fig 1: CONSULT-II Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 2.

OK or NG

OK : Seat memory switch circuit is OK.
NG : GO TO 2.

CHECK SEAT MEMORY SWITCH

Turn ignition switch OFF.
Disconnect seat memory switch connector.
Check continuity between seat memory switch connector B328 terminal 7, 22, 23 and 32B.

CONTINUITY SPECIFICATIONS

Connector	Terminals		Condition	Continuity
B328	7	32B	Memory switch 1: ON	Yes
	7		Memory switch 1: OFF	No
	22		Memory switch 2: ON	Yes
	22		Memory switch 2: OFF	No
	23		Set switch: ON	Yes
	23		Set switch: OFF	No

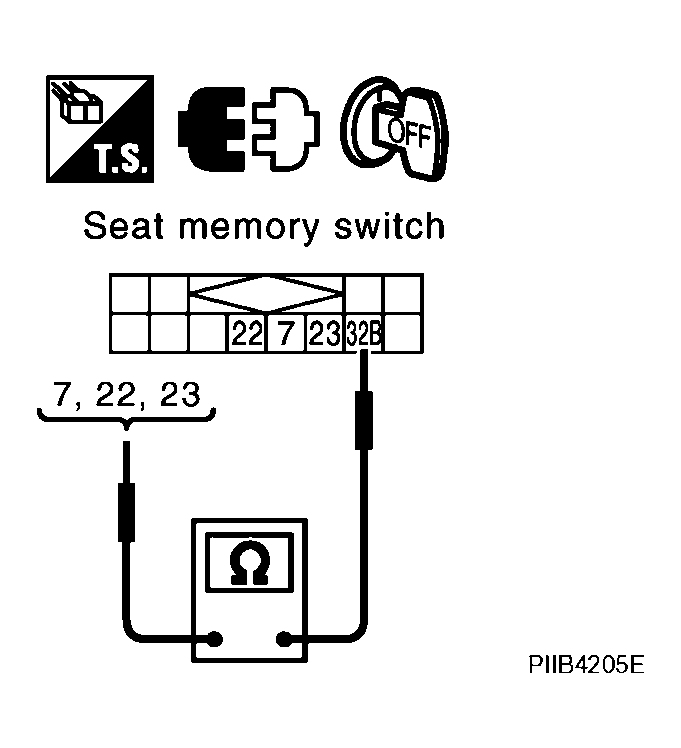

Fig 2: Identifying Continuity Between Seat Memory Switch Connector B328 Terminal 7, 22, 23 And 32B

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.
NG : Replace seat memory switch.

CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector.

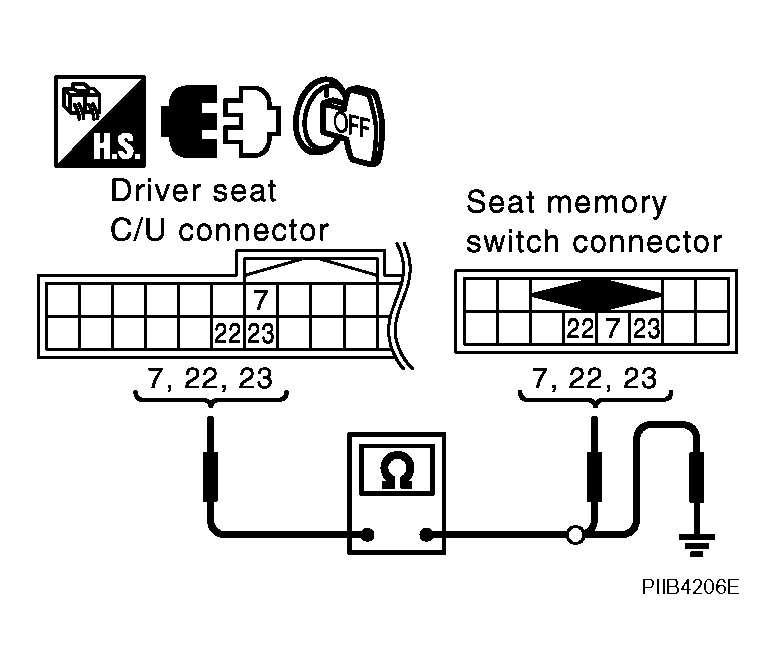

2. Check continuity between driver seat control unit connector B324 terminals 7, 22, 23 and seat memory switch connector B328 terminals 7, 22, 23.
  7 (L/G) - 7 (L/G) : Continuity should exist.

  22 (L/B) - 22 (L/B) : Continuity should exist.

  23 (L/W) - 23 (L/W) : Continuity should exist.
3. Check continuity between driver seat control unit connector M324 terminals 7, 22, 23 and ground.
  7 (L/G) - Ground : Continuity should not exist.

  22 (L/B) - Ground : Continuity should not exist.

  23 (L/W) - Ground : Continuity should not exist.
OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness between driver seat control unit and seat memory switch.
CHECK SEAT MEMORY SWITCH GROUND CIRCUIT
Check continuity between seat memory switch connector B328 terminal 32B and ground.

Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector M324 Terminals 7, 22, 23 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

32B (B) - Ground : Continuity should exist.

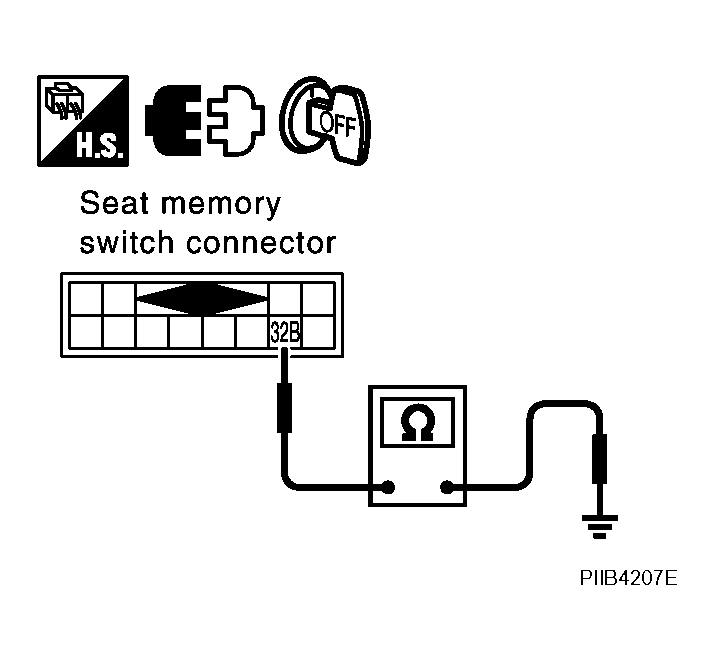

Fig 4: Identifying Continuity Between Seat Memory Switch Connector B328 Terminal 32B And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Replace driver seat control unit.
- NG : Repair or replace harness between seat memory switch and ground.
