Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spiral cable assembly. Refer to "SPIRAL CABLE ".
  2. Remove steering angle sensor from spiral cable assembly.

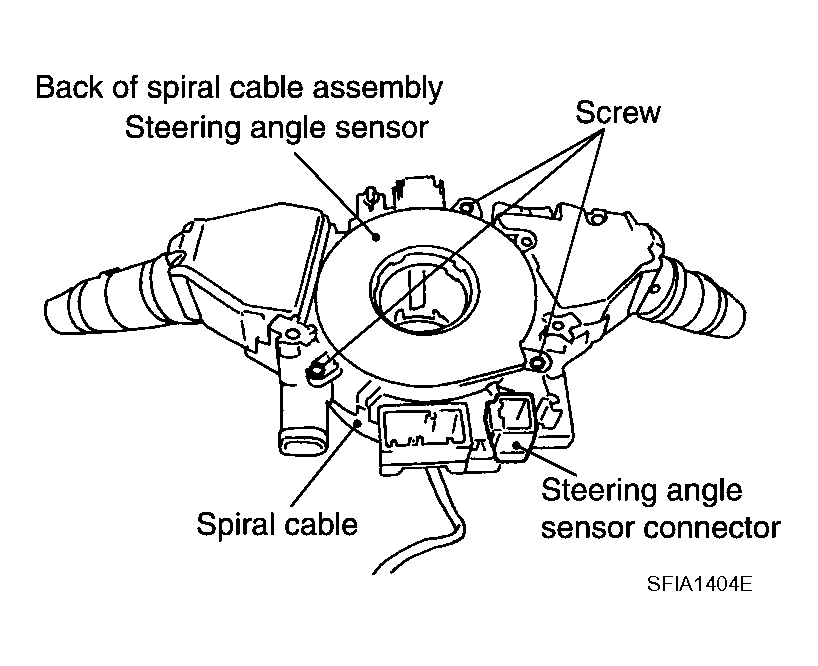

    Fig 1: Identifying Steering Angle Sensor From Spiral Cable Assembly
    G04122060Courtesy of NISSAN MOTOR CO., U.S.A.
