Side Shaft Assembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the drift, install side shaft oil seal.

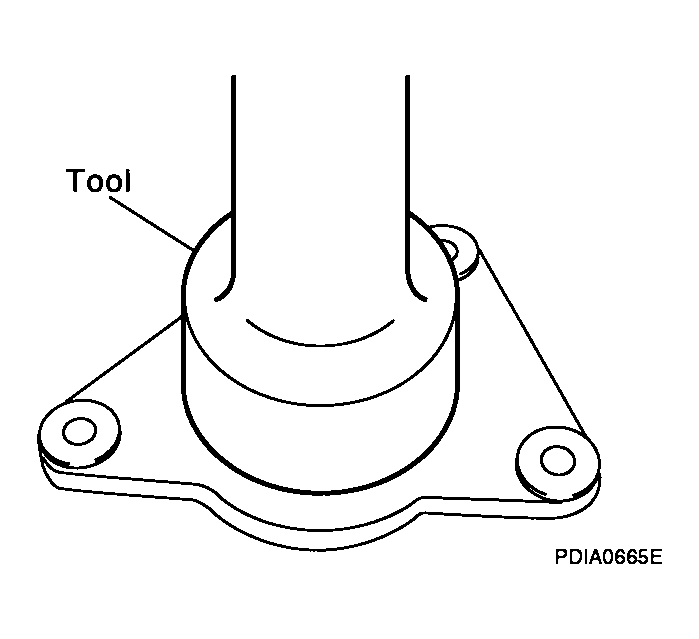

    Fig 1: Identifying Side Shaft Oil Seal
    G04121487Courtesy of NISSAN MOTOR CO., U.S.A.

    Tool number :KV38100200 ( - )

    CAUTION:
    • Do not reuse oil seal.
    • When installing, do not incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
  2. Install dust sealed.
  3. Support side shaft bearing with the drift, then press side shaft into the side shaft bearing using a press.

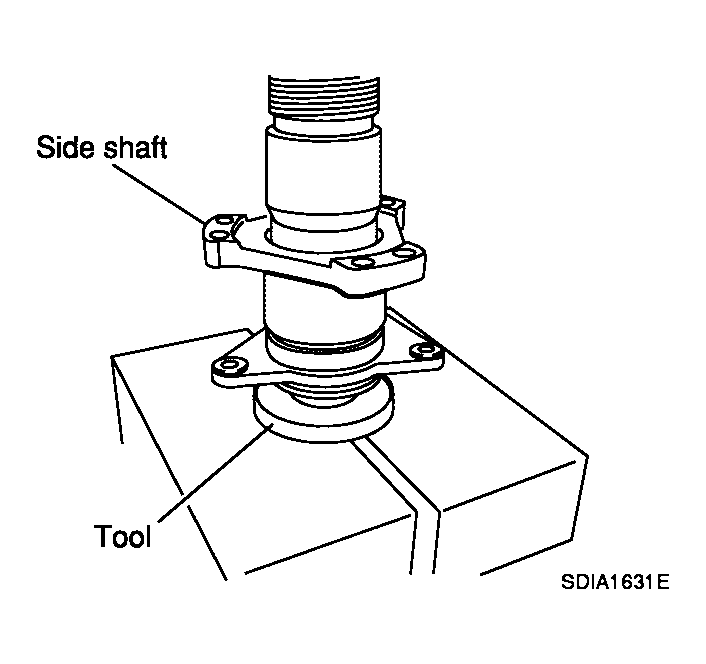

    Fig 2: Pressing Side Shaft Into Side Shaft Bearing
    G04121488Courtesy of NISSAN MOTOR CO., U.S.A.

    Tool number : ST30032000 (J-26010-01)

  4. Apply multi-purpose grease to O-ring, and install it to extension tube retainer.
    CAUTION: Do not reuse O-ring.
