Components (AWD Model)

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

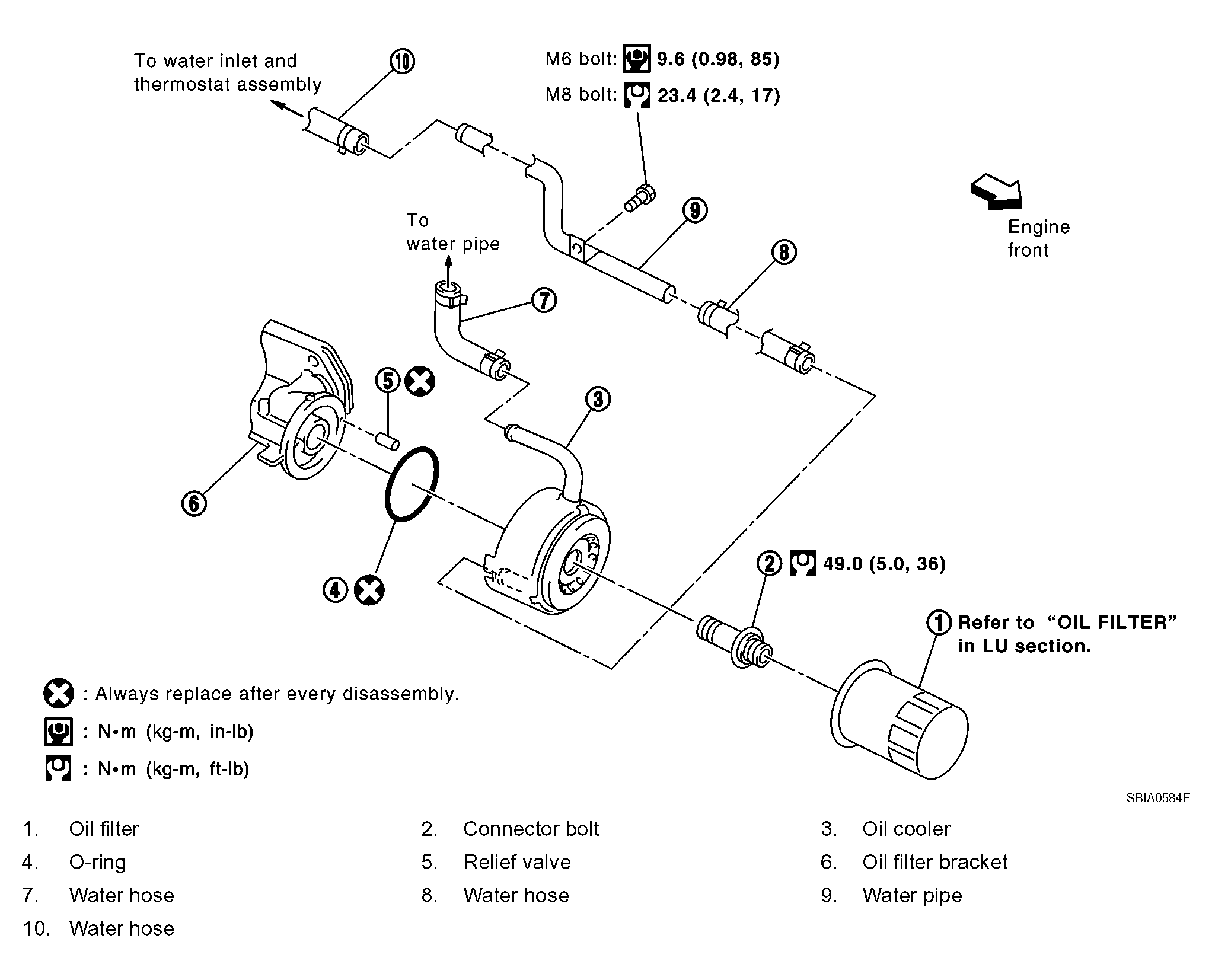

Fig 1: Oil Cooler Replacement Components With Torque Specifications (AWD Model)
G04119403Courtesy of NISSAN MOTOR CO., U.S.A.
